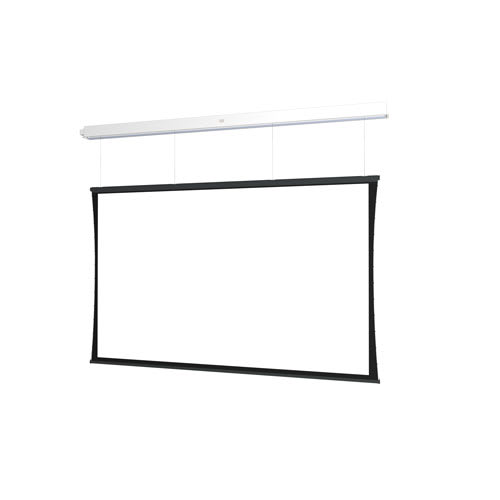

Da-Lite Tensioned Advantage Series, 65" x 104" with Da-Mat - DL15014ELS
Recessed ceiling electric screen featuring SightLine cable drop, Da-Mat surface, and a 65" x 104" wide format dimensions
The Da-Lite DL15014ELS is a Tensioned Advantage Series electric screen designed for ceiling recessed applications. This unit features a wide 16:10 screen format with a 65" x 104" (165.1 x 264.2 cm) surface area and a 123 in (312.4 cm) diagonal. Equipped with the SightLine cable drop system, this screen utilizes a single roller design with thin cables to create a floating appearance, eliminating the need for a traditional black drop. This setup provides usable space above the viewing area, allowing for the strategic placement of speakers or cameras. The screen utilizes a Da-Mat surface for standard resolution front projection, paired with TruGuide™ Electric Screen Tensioning for a smooth viewing surface. For international installations, this specific model is outfitted with a 220V (50Hz) motor. The white powder-coated housing is UL Plenum rated and includes a slot closure door and standard low voltage control.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 123 in (312.4 cm) |
| Screen Height | 65 in (165.1 cm) |
| Shipping Dimensions | 129" x 13" x 10" (327.7 x 33 x 25.4 cm) |
| Shipping Weight | 159 lbs (72.1 kg) |
| Size | 65" x 104" or 123" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 12
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
Will this screen fit my display requirements?
The DL15014ELS is a 65" x 104" wide format screen with a 123 in (312.4 cm) diagonal, designed for front projection using a Da-Mat surface.
What is required for ceiling installation?
This is a ceiling recessed model featuring a two-stage installation option where the housing is installed during rough-in and the surface during finishing. It features sliding installation brackets for mounting to structures above a drop ceiling.
What controls are compatible with this screen?
The unit includes standard low voltage control and is compatible with accessories like the DL16622 Smart Low Voltage Wall Switch or the DL16524 Screen Controller with Infrared Remote.
How does the SightLine drop system work?
The SightLine feature uses a suspension system in the single roller design with thin cables, allowing for variable vertical placement between the ceiling and the top of the screen.
Which documents are available for submittals?
Installers can access the Tensioned Advantage Series Specification Sheet, CAD models, and BIM files via the resources section to assist with project submittals.
