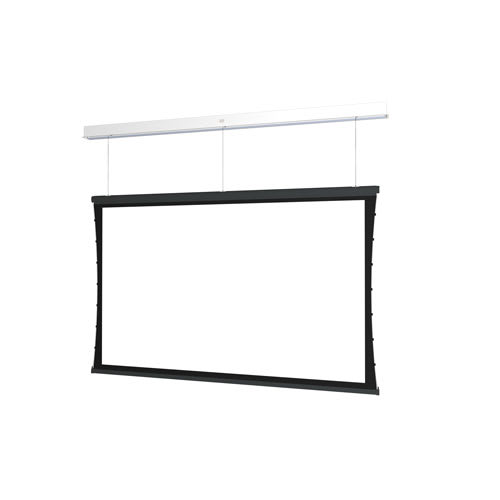

Da-Lite Tensioned Advantage Series, 60" x 96" with HD Progressive 1.0 - DL15005EFLS
Ceiling recessed electric screen with SightLine™ cable drop, 60" x 96" format, and HD Progressive 1.0 surface
The Da-Lite DL15005EFLS is a Tensioned Advantage series ceiling recessed electric screen designed for high-end professional environments. This 60" x 96" (113" diagonal) wide 16:10 format screen features the SightLine™ cable drop system, which uses 3 or 4 thin cables to provide a floating screen effect and eliminate the need for a traditional black drop. The assembly is designed for a front projection application and utilizes a high-resolution HD Progressive 1.0 surface. This specific SKU is the surface, roller, and motor assembly only; the case and box must be ordered separately. Installation is flexible for two-stage processes, allowing the white powder-coated, UL Plenum rated case to be installed during rough-in while the screen surface is added during finishing. This unit includes standard low voltage control and is TAA compliant for government-regulated projects.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 113 in (287 cm) |
| Screen Height | 60 in (152.4 cm) |
| Shipping Dimensions | 123" x 13" x 10" (312.4 x 33 x 25.4 cm) |
| Shipping Weight | 121 lbs (54.9 kg) |
| Size | 60" x 96" or 113" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 12
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.0 |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
Does the DL15005EFLS include the housing/case?
No, this SKU is the surface, roller, and motor assembly only. The case and box must be ordered separately.
What is the drop distance for the SightLine cable system?
The SightLine feature allows for variable vertical placement between the ceiling and the top of the screen, with standard drops up to 70" or an optional 10' drop.
Is this screen compatible with TAA requirements?
Yes, this model is TAA compliant, making it suitable for many government and federal contracts.
What kind of control does this screen use?
This model features standard low voltage control, and is compatible with accessories like the Da-Lite Screen Controller with an RF (BLE) Remote (DL16522).
What tools are required for installation?
Installation requires the tools listed in the Da-Lite Tensioned Advantage Series Instructions, such as a screwdriver and level.
