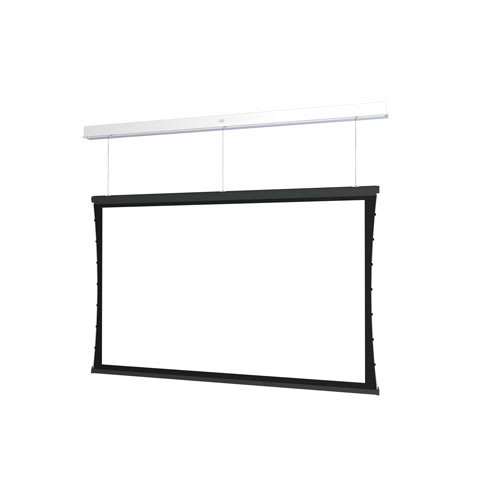

Da-Lite Tensioned Advantage Series, 60" x 96" with Da-Mat - DL15008FLS
Ceiling recessed electric screen for front projection, 60" x 96" size with SightLine cable drop and Da-Mat surface
The Da-Lite DL15008FLS is a Tensioned Advantage Series electric screen designed for ceiling recessed applications. This 60" x 96" (152.4 x 2438 mm) wide format screen features a SightLine cable drop system, which utilizes 3 or 4 thin cables to provide the appearance of a floating screen, eliminating the need for traditional black drop borders. The unit is equipped with a standard 120V (60Hz) motor and standard low voltage control. This specific SKU is the Surface, Roller, and Motor Assembly only; the case or box must be ordered separately. It is built with a white powder-coated, UL Plenum rated case and features a slot-style closure door. The TruGuide™ Electric Screen Tensioning System works alongside Smooth Roll Technology to ensure the Da-Mat surface remains perfectly flat during use. This TAA compliant solution is intended for large venue front projection environments where a clean, integrated aesthetic is required.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 113 in (287 cm) |
| Screen Height | 60 in (152.4 cm) |
| Shipping Dimensions | 122" x 13" x 10" (309.9 x 33 x 25.4 cm) |
| Shipping Weight | 75 lbs (34 kg) |
| Size | 60" x 96" or 113" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 12
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
Does this screen include the housing or case?
No, this SKU is the Surface, Roller, and Motor Assembly only; the case or box must be ordered separately.
What is required for a recessed installation of the DL15008FLS?
This is a ceiling recessed application. The two-stage installation allows the screen case to be installed during rough-in construction and the surface assembly during the finishing stage.
Is the DL15008FLS TAA compliant?
Yes, this product is TAA compliant and manufactured in the US.
How do I control the screen movement?
The screen includes standard low voltage control and is compatible with accessories like the DL16524 Infrared Remote or DL16622 Smart Low Voltage Wall Switch.
What is the benefit of the SightLine cable drop on this model?
The SightLine system uses thin cables to hold the screen, which allows for variable vertical placement of the screen and provides usable space above the viewing area for speakers or cameras.
