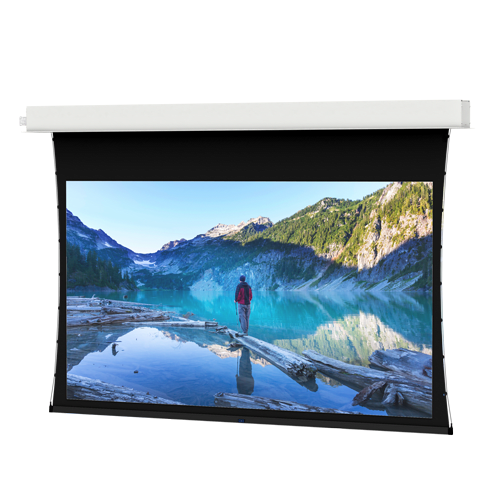

Da-Lite Tensioned Advantage Series, 60.75" x 144" with HD Progressive 1.0 - DL15686BL
156" Ultrawide tensioned electric screen with HD Progressive 1.0 surface, SightLine cable drop, and recessed ceiling application
The Da-Lite DL15686BL is a Tensioned Advantage Series electric screen designed for ceiling recessed applications. This 156 in (396.2 cm) diagonal ultrawide (21:9) screen features an HD Progressive 1.0 high-resolution surface and utilizes SightLine technology, which employs a suspension system with thin cables to provide the appearance of a floating screen. This design eliminates the need for a traditional black drop border between the ceiling and the screen. The unit is built with a white powder-coated, UL Plenum rated case that features a slot-style closure door and integrates standard low voltage control. For installation flexibility, the housing can be mounted above drop ceilings using sliding installation brackets, allowing for a two-stage process where the case is installed during rough-in and the surface assembly during finishing. This specific model is TAA compliant and is designed for large venue front projection environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 156 in (396.2 cm) |
| Screen Height | 60.75 in (154.3 cm) |
| Shipping Dimensions | 174" x 13" x 10" (441.9 x 33 x 25.4 cm) |
| Shipping Weight | 79 lbs (35.8 kg) |
| Size | 60.75" x 144" or 156" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 12
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | Ultrawide (21:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.0 |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
What is the screen size and format for the DL15686BL?
This is an ultrawide 21:9 format screen with a 156 in (396.2 cm) diagonal and a 60.75 in (154.3 cm) height.
Does this screen use a traditional black drop?
No, it uses the SightLine cable drop system, which uses thin cables to create a floating screen effect and eliminate the black border.
Can I change the vertical placement of the screen after installation?
Yes, the SightLine cables allow for variable vertical placement with a standard drop distance of up to 70 in.
What is the installation requirement for this model?
This is a ceiling recessed unit; the case is designed for installation during the rough-in stage to conceal the opening.
What accessories are compatible with the DL15686BL?
Compatible accessories include Da-Lite screen controllers (SKUs DL16524, DL16522, DL16523, DL16525, DL16521, or DL15316) and the DL16622 Smart Low Voltage Wall Switch.
