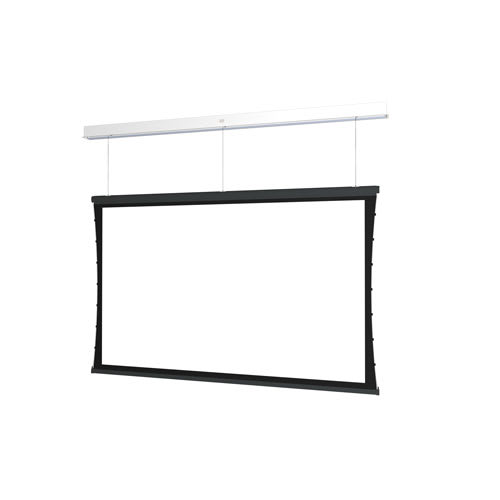

Da-Lite Tensioned Advantage Series, 54" x 96" with HD Progressive 1.0 - DL14958LS
Ceiling recessed electric screen with SightLine cable drop, 54" x 96" surface, and HD Progressive 1.0 high-resolution surface
The DL14958LS is a Da-Lite Tensioned Advantage Series ceiling recessed electric screen designed for high-end architectural integration. This 54" x 96" (110" diagonal) screen utilizes a SightLine cable drop system, which uses 3 or 4 thin cables to suspend the screen, creating a floating appearance that eliminates the need for a traditional black drop border. This system is particularly useful in large venues where preserving architectural interest and allowing space for speakers or cameras above the viewing area is required. This specific model features the HD Progressive 1.0 high-resolution surface for front projection. The screen case is UL Plenum rated and finished in a white powder coating. It is built for ceiling recessed applications and includes a slot-style closure door. Installation is flexible via sliding mounting brackets, allowing for a two-stage process where the case is installed during rough-in and the surface assembly is added during finishing. The unit operates on standard 120V (60Hz) power and is TAA compliant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 110 in (279.4 cm) |
| Screen Height | 54 in (137.2 cm) |
| Shipping Dimensions | 123" x 13" x 10" (312.4 x 33 x 25.4 cm) |
| Shipping Weight | 147 lbs (66.7 kg) |
| Size | 54" x 96" or 110" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.0 |
| TAA Compliant | Yes |
| UPC | 840236906680 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
Will the DL14958LS fit my ceiling installation?
This model is specifically designed for ceiling recessed applications and includes a UL Plenum rated case for compliant installations.
What is the difference between this and the standard Tensioned Advantage?
The DL14958LS features the SightLine cable drop system, which uses thin cables to provide a floating appearance and variable drop distances.
What additional controls can I buy for this screen?
You can add compatible accessories such as the Da-Lite DL16524 infrared remote controller or the DL16522 RF (BLE) remote controller.
Can I adjust the vertical drop distance of the screen?
Yes, the SightLine feature accommodates a standard range of drop distances up to 70" between the ceiling and the top of the screen.
Which document should I use for the submittal process?
The Tensioned Advantage Series Specification Sheet (PDF) contains the technical data required for project submittals.
