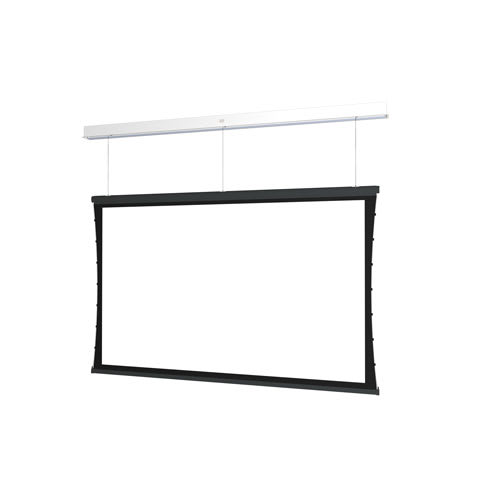

Da-Lite Tensioned Advantage Series, 52" x 92" with HD Progressive 1.0 Perf - DL14952LS
Ceiling recessed electric screen, 52" x 92" (106" diagonal), with SightLine cable drop and acoustically transparent HD Progressive 1.0 Perf surface
The Da-Lite DL14952LS is a Tensioned Advantage Series ceiling recessed electric screen designed for high-end integration. This 52" x 92" (106" diagonal) 16:9 HDTV format screen features a SightLine cable drop, which utilizes 3 or 4 thin cables to provide a floating screen effect, eliminating the need for a traditional black drop. This specialized suspension system allows for variable vertical placement, accommodating standard drops up to 70" or the DL16476 10-ft SightLine option to preserve architectural interests or accommodate speaker and camera placement. The screen surface is an HD Progressive 1.0 Perf, providing high-resolution and acoustically transparent capabilities for front projection applications. This TAA-compliant unit features a white powder-coated case with a slot closure door and a standard 120V (60Hz) motor. The TruGuide™ Electric Screen Tensioning System and Smooth Roll Technology work together to ensure a perfectly flat, smooth viewing surface. For installation, the two-stage design allows the UL Plenum rated case to be installed during rough-in, with the screen surface assembly completed during the finishing stage.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 106 in (269.2 cm) |
| Screen Height | 52 in (132.1 cm) |
| Shipping Dimensions | 117" x 13" x 10" (297.2 x 33 x 25.4 cm) |
| Shipping Weight | 141 lbs (64 kg) |
| Size | 52" x 92" or 106" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Acoustically TransparentHigh Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.0 Perf |
| TAA Compliant | Yes |
| UPC | 840236905249 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
Will the DL14952LS work for acoustically transparent front projection?
Yes, the HD Progressive 1.0 Perf surface is specifically designed with acoustically transparent and high-resolution features for front projection.
How does the SightLine drop affect the installation depth?
The SightLine system allows for variable vertical placement with standard cables accommodating drops up to 70"; a 10-ft SightLine option (DL16476) is also available.
What is required for the ceiling installation of the DL14952LS?
This is a ceiling recessed application; the two-stage installation allows the white powder-coated case to be installed during the rough-in stage.
Can I add remote control options to this screen?
Yes, compatible controllers include the DL16524 infrared remote, or the DL16522 and DL16523/DL16525 RF (BLE) versions.
What is the difference between this screen and the Parallax Pure version?
Unlike vinyl surfaces, the Parallax Pure features a micro-layered lens system that remains optically flat under projection despite slight surface waves.
