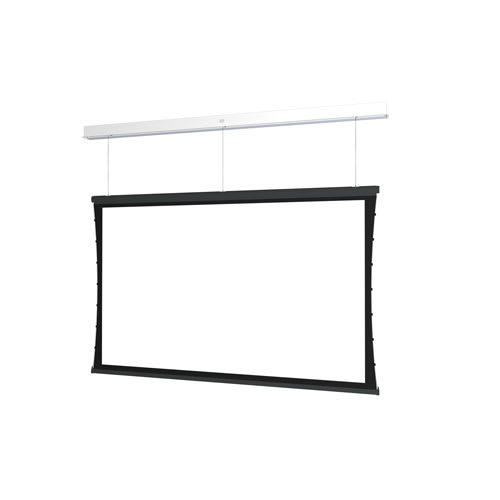

Da-Lite Tensioned Advantage Series, 52" x 92" with HD Progressive 1.0 - DL14951BLS
Ceiling recessed electric screen with SightLine cable drop, 106" diagonal, and HD Progressive 1.0 surface
The DL14951BLS is a Tensioned Advantage Series ceiling recessed electric screen designed for professional environments. This 52" x 92" (106" diagonal) projection screen utilizes the SightLine cable drop system, which employs 3 or 4 thin cables to provide a floating screen effect. This suspension system eliminates the need for a traditional black drop, preserving architectural integrity and allowing for camera or speaker placement in the space above the viewing area. This specific model features an HD Progressive 1.0 surface and is configured for front projection. The screen is built with a white powder-coated, UL Plenum rated case designed for ceiling recessed applications. Installation is flexible due to two-stage options: the housing can be installed during the rough-in construction phase, while the screen surface assembly is installed during finishing. It features TruGuide™ Electric Screen Tensioning for surface smoothness and Smooth Roll Technology to maintain a perfectly flat screen. This TAA compliant unit includes standard low voltage control and a slot closure door.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 106 in (269.2 cm) |
| Screen Height | 52 in (132.1 cm) |
| Shipping Dimensions | 117" x 13" x 10" (297.2 x 33 x 25.4 cm) |
| Shipping Weight | 111 lbs (50.4 kg) |
| Size | 52" x 92" or 106" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.0 |
| TAA Compliant | Yes |
| UPC | 840236936816 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
Will the DL14951BLS fit my ceiling configuration?
Yes, this is a ceiling recessed model with sliding installation brackets that allow for flexible mounting to structures above a drop ceiling.
What is the vertical drop distance for the SightLine system?
The cables accommodate a standard variable drop distance of up to 70" between the ceiling and the top of the screen.
What additional controls are compatible with this screen?
You can add accessories like the Da-Lite Screen Controller with Infrared Remote (DL16524) or RF (BLE) options (DL16522) to your installation.
How is the screen tensioned and maintained?
The screen uses a TruGuide™ Electric Screen Tensioning System and Smooth Roll Technology to ensure the surface remains perfectly flat.
Does this screen require a specific motor voltage?
This unit comes with a standard 120V (60Hz) motor and standard low voltage control.
