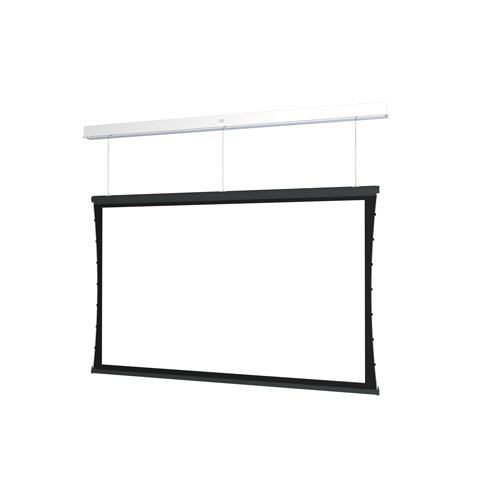

Da-Lite Tensioned Advantage Series, 50" x 80" with Da-Mat - DL14996FLS
94" diagonal electric ceiling recessed screen with Da-Mat surface and SightLine cable drop system
The DL14996FLS is a Tensioned Advantage Series electric screen designed for ceiling recessed applications. This 50" x 80" screen, providing a 94" diagonal, utilizes the SightLine cable drop system to create a floating appearance by eliminating the traditional black drop border. This design feature allows for a variable vertical placement of the screen, accommodating standard drop distances or an optional 10-ft extension, which preserves architectural interest and provides usable space above the viewing area for speakers or cameras. This specific SKU is a Surface, Roller, and Motor Assembly only; the case or box must be ordered separately. The assembly features a white powder-coated case and uses the TruGuide™ Electric Screen Tensioning System to maintain a smooth, flat surface. It includes standard low voltage control and utilizes a standard 120V (60Hz) motor. The Da-Mat surface provides standard resolution for front projection, and the unit is TAA compliant. This assembly is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 94 in (238.8 cm) |
| Screen Height | 50 in (127 cm) |
| Shipping Dimensions | 109" x 13" x 10" (276.9 x 33 x 25.4 cm) |
| Shipping Weight | 67 lbs (30.4 kg) |
| Size | 50" x 80" or 94" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| TAA Compliant | Yes |
| UPC | 840236938643 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
Will the DL14996FLS work with my existing ceiling setup?
This is a ceiling recessed screen with a SightLine cable drop. The cables accommodate a range of drop distances, providing vertical placement flexibility for your specific ceiling height.
What is included with this part number?
This SKU (DL14996FLS) is a Surface, Roller, and Motor Assembly only. You must order the case or box separately to complete the installation.
What kind of control does this screen use?
The DL14996FLS includes standard low voltage control and is compatible with optional accessories like the DL16622 Smart Low Voltage Wall Switch.
How does the SightLine system differ from a standard drop?
The SightLine system uses a suspension system in the single roller design with cables, eliminating the need for a black border above the screen area.
Is this screen TAA compliant for government projects?
Yes, this model is TAA compliant and is manufactured in the USA.
