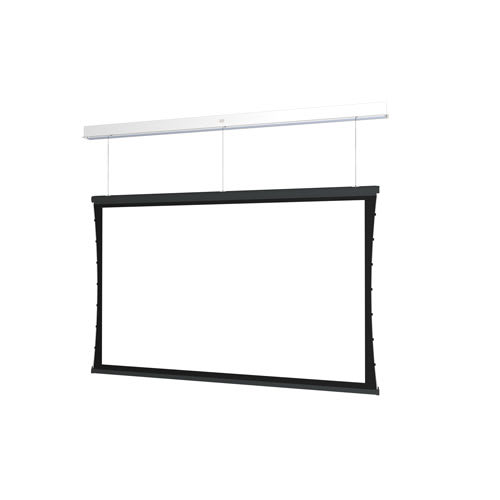

Da-Lite Tensioned Advantage Series, 45" x 80" with Parallax Stratos 1.0 - DL14942EFLS
Recessed electric ceiling screen with SightLine cable drop, 45" x 80" dimensions, and Parallax Stratos 1.0 ALR surface
The Da-Lite DL14942EFLS is a Tensioned Advantage Series electric screen designed for ceiling recessed applications. This specific SKU is the Surface, Roller, and Motor Assembly only; the case and box must be ordered separately. Featuring the SightLine cable drop, this screen provides a floating appearance by using a suspension system of 3 or 4 thin cables to eliminate the need for a traditional black drop. This creates usable space above the viewing area for camera or speaker placement while maintaining an optically flat surface thanks to the TruGuide™ Electric Screen Tensioning System and Smooth Roll Technology. The Parallax Stratos 1.0 surface is an Ambient Light Rejecting (ALR) and high-resolution material designed for front projection. This 45" x 80" HDTV (16:9) format screen includes standard low voltage control and is TAA compliant. The white powder-coated case is UL Plenum rated for safe installation in various commercial environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 92 in (233.7 cm) |
| Screen Height | 45 in (114.3 cm) |
| Shipping Dimensions | 104" x 13" x 10" (264.2 x 33 x 25.4 cm) |
| Shipping Weight | 67 lbs (30.4 kg) |
| Size | 45" x 80" or 92" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Ambient Light Rejecting (ALR)High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Parallax Stratos 1.0 |
| TAA Compliant | Yes |
| UPC | 840236936472 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
Will the Da-Lite DL14942EFLS fit my display configuration?
This 45" x 80" unit is an HDTV (16:9) format screen with a 92 in (233.7 cm) diagonal, specifically paired with the Parallax Stratos 1.0 surface.
What do I need to order to complete this installation?
This SKU is the Surface, Roller, and Motor Assembly only. You must order the case and box separately to complete the assembly.
How do I adjust the vertical placement of the screen?
The SightLine cable drop accommodates a standard range of drop distances up to 70" between the ceiling and the top of the screen.
Can I add remote control functionality to this screen?
Yes, you can add compatible controllers such as the Da-Lite Screen Controller with RF (BLE) Remote (DL16522) or an Infrared Remote (DL16524).
Is this screen suitable for plenum rated spaces?
The case for this Tensioned Advantage Series screen is UL Plenum rated, making it suitable for specific ceiling requirements.
