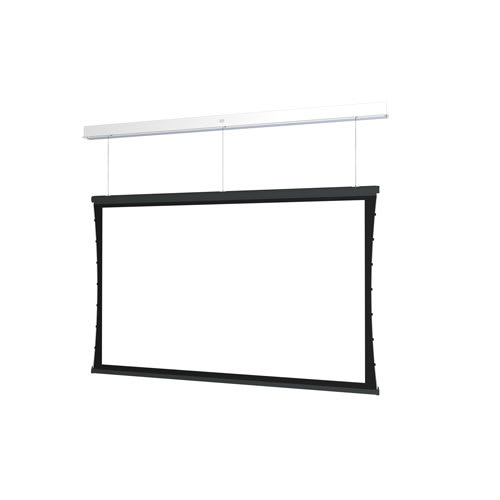

Da-Lite Tensioned Advantage Series, 45" x 80" with HD Progressive 1.0 Perf - DL14945LS
45" x 80" ceiling recessed electric screen with SightLine cable drop and acoustically transparent HD Progressive 1.0 Perf surface
The Da-Lite DL14945LS is a ceiling recessed electric screen from the Tensioned Advantage Series, specifically engineered for large venue environments. This 45" x 80" (92" diagonal) projection screen features the SightLine cable drop system, which uses thin cables to provide a floating appearance and eliminates the need for a traditional black drop. The HD Progressive 1.0 Perf surface is acoustically transparent and high resolution, making it an ideal choice for front projection applications where audio must pass through the screen. This SKU features a white powder-coated case that is UL Plenum rated, ensuring it meets safety requirements for ceiling installations. The screen utilizes Smooth Roll Technology and the TruGuide™ Electric Screen Tensioning System to maintain an optimally flat surface. For ease of installation, the sliding mounting brackets allow for flexible attachment to the structure above the drop ceiling, and the two-stage installation process allows the case to be installed during rough-in while the surface is added during finishing.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 92 in (233.7 cm) |
| Screen Height | 45 in (114.3 cm) |
| Shipping Dimensions | 104" x 13" x 10" (264.2 x 33 x 25.4 cm) |
| Shipping Weight | 125 lbs (56.7 kg) |
| Size | 45" x 80" or 92" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Acoustically TransparentHigh Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.0 Perf |
| TAA Compliant | Yes |
| UPC | 840236903566 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
Will this screen fit my specific projection needs?
This DL14945LS model is a 45" x 80" (92" diagonal) screen designed for front projection, featuring an acoustically transparent HD Progressive 1.0 Perf surface.
Does this screen include a way to control it?
Yes, it includes standard low voltage control and is compatible with the DL16523 Screen Controller with PoE Injector or the DL16622 Smart Low Voltage Wall Switch.
How do I adjust the vertical drop distance of the screen?
The SightLine cable drop feature allows for variable vertical placement, accommodating a standard drop of up to 70" between the ceiling and the top of the screen.
What is required for a ceiling recessed installation?
This is a ceiling recessed application that requires a two-stage installation; the white powder-coated, UL Plenum rated case is installed during the rough-in stage.
Which documents are available for submittals?
You can access the Tensioned Advantage Series Specification Sheet, CAD Models, or BIM Models via the resources provided on the product page.
