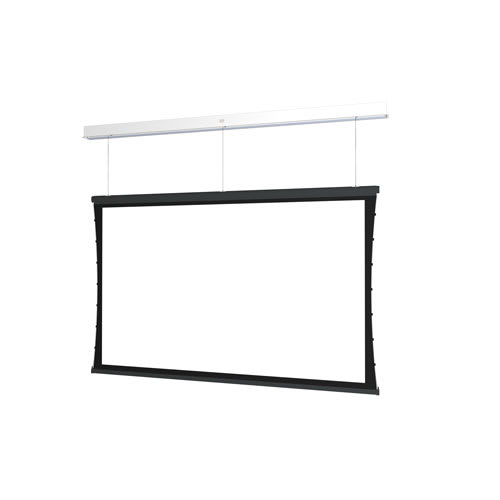

Da-Lite Tensioned Advantage Series, 45" x 80" with HD Progressive 1.0 - DL14944LS
Ceiling recessed electric screen with SightLine cable drop, 92" diagonal, and HD Progressive 1.0 surface for front projection
The Da-Lite DL14944LS is a Tensioned Advantage Series ceiling recessed electric screen designed to integrate cleanly into finished architectural spaces. Featuring a SightLine cable drop, this screen utilizes a suspension system with thin cables to create the appearance of a floating screen, effectively eliminating the need for a traditional black drop border. This specific model is configured for front projection with an HD Progressive 1.0 surface and a 16:9 HDTV screen format. The 45" x 80" dimensions correspond to a 92" diagonal. This unit is built for ceiling recessed applications, featuring a white powder-coated case that can be installed in two stages: the case during the rough-in construction and the screen surface assembly during the finishing stage. The TruGuide™ Electric Screen Tensioning System and Smooth Roll Technology ensure the surface remains perfectly flat. This TAA compliant, US-made screen is ideal for large venue environments where a clean, modern aesthetic is required. Operation is managed via standard 120V (60Hz) motorization and includes standard low voltage control.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 92 in (233.7 cm) |
| Screen Height | 45 in (114.3 cm) |
| Shipping Dimensions | 104" x 13" x 10" (264.2 x 33 x 25.4 cm) |
| Shipping Weight | 125 lbs (56.7 kg) |
| Size | 45" x 80" or 92" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.0 |
| TAA Compliant | Yes |
| UPC | 840236903320 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
Will the DL14944LS fit my specific display setup?
The DL14944LS is a projection screen, not a display mount. It is designed for front projection using the HD Progressive 1.0 surface in a 16:9 HDTV format.
What do I need to buy to control the DL14944LS?
This unit includes standard low voltage control. For expanded functionality, you can add compatible accessories like the Da-Lite Screen Controller with RF (BLE) Remote, SKU DL16522.
How much vertical clearance is needed for the SightLine drop?
The SightLine system accommodates a standard drop distance of up to 70" between the ceiling and the top of the screen, though a 10' option is available via part number DL16476.
Is the DL14944LS suitable for plenum environments?
Yes, the case is UL plenum rated, making it suitable for installation in plenum ceiling spaces.
Which documentation is required for a project submittal?
For technical submittals, you can refer to the Tensioned Advantage Series Specification Sheet or the available CAD and BIM models found in the Resources tab.
