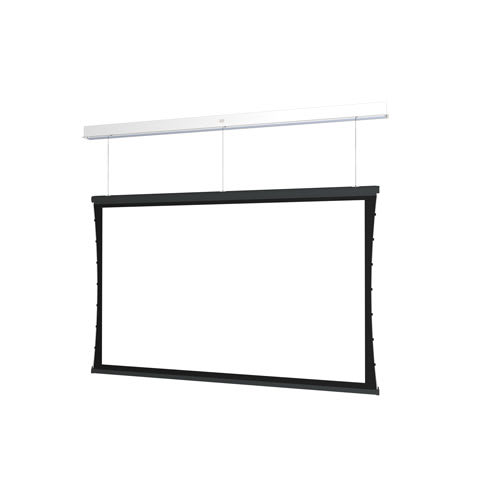

Da-Lite Tensioned Advantage Series, 45" x 80" with HD Progressive 1.0 - DL14944FLS
Ceiling recessed electric screen with HD Progressive 1.0 surface, SightLine cable drop, and 45" x 80" dimensions
The Da-Lite DL14944FLS is a Tensioned Advantage Series electric screen designed for ceiling recessed applications. This unit is specifically configured as a Surface, Roller, and Motor Assembly only; the case and box must be ordered separately. Featuring the SightLine cable drop, this screen creates the appearance of a floating display by using a suspension system with thin cables, which eliminates the need for a traditional black drop border. This design provides a clean, architectural aesthetic and creates usable space above the viewing area for speakers or cameras. The 45" x 80" (92" diagonal) screen uses an HD Progressive 1.0 high-resolution surface optimized for front projection. It includes standard 120V (60Hz) motor operation and standard low voltage control. For a clean, professional finish, the white powder-coated case features a slot-style closure door. This TAA compliant product utilizes the TruGuide™ Electric Screen Tensioning System and Smooth Roll Technology to maintain a perfectly flat viewing surface.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 92 in (233.7 cm) |
| Screen Height | 45 in (114.3 cm) |
| Shipping Dimensions | 104" x 13" x 10" (264.2 x 33 x 25.4 cm) |
| Shipping Weight | 101 lbs (45.8 kg) |
| Size | 45" x 80" or 92" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.0 |
| TAA Compliant | Yes |
| UPC | 840236936564 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
Does this screen include the mounting case?
No, this SKU (DL14944FLS) is the Surface, Roller, and Motor Assembly only; the case and box must be ordered separately.
How does the SightLine cable drop work?
The SightLine feature uses a suspension system with 3 or 4 thin cables to eliminate the need for a black drop, creating a floating screen effect.
What is required for the installation of this ceiling recessed screen?
This series offers a two-stage installation; the case can be installed during rough-in construction, while the screen surface assembly is added during the finishing stage.
Can I control the screen height with a remote?
While it includes standard low voltage control, you can add compatible accessories like the Da-Lite Screen Controller with RF (BLE) Remote (DL16522) or Infrared Remote (DL16524).
Will this screen fit a standard 16:9 display setup?
Yes, this model is specifically designed with an HDTV (16:9) screen format.
