Da-Lite Tensioned Advantage Series, 45" x 80" with HD Progressive 1.0 - DL14944EBLS
Tensioned Advantage ceiling recessed electric screen, 45" x 80" with HD Progressive 1.0 surface and SightLine cable drop

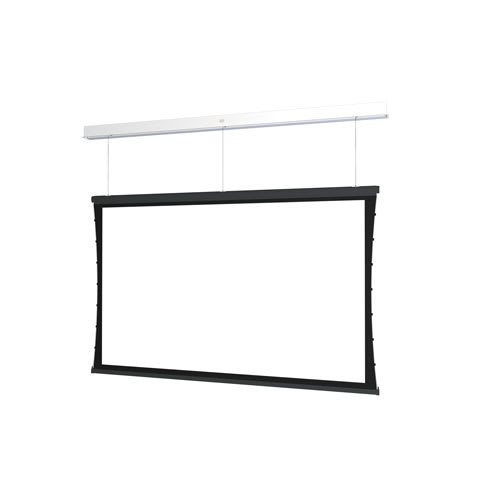

The Da-Lite DL14944EBLS is a Tensioned Advantage Series electric screen designed for ceiling recessed applications. This 45" x 80" (92 in (233.7 cm) diagonal) projection surface utilizes the HD Progressive 1.0 surface for high-resolution front projection. This specific model features the SightLine cable drop system, which uses a single roller design with thin cables to create a floating appearance by eliminating the traditional black drop. This design allows for variable vertical placement between the ceiling and the top of the screen, accommodating a standard drop distance of up to 70" (1779.4 mm). The unit is built for large venue use and is TAA compliant. The white powder-coated housing is UL plenum rated for safety. This model is provided as a Case/Box Only for Rough-In, allowing for a two-stage installation where the case is installed during construction and the surface assembly is completed during the finishing stage.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 92 in (233.7 cm) |
| Screen Height | 45 in (114.3 cm) |
| Shipping Dimensions | 104" x 13" x 10" (264.2 x 33 x 25.4 cm) |
| Shipping Weight | 101 lbs (45.8 kg) |
| Size | 45" x 80" or 92" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.0 |
| TAA Compliant | Yes |
| UPC | 840236936540 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
Does this screen work with the SightLine cable drop system?
Yes, the DL14944EBLS includes the SightLine drop feature, which uses thin cables to provide a floating appearance and accommodates standard drop distances up to 70".
What is required for the installation of the DL14944EBLS?
This SKU is the Case/Box Only for Rough-In. It is designed for a two-stage installation process to simplify the transition from construction to finishing.
Is the DL14944EBLS TAA compliant?
Yes, this model is TAA compliant and features a white powder-coated, UL plenum rated case.
What can I use to control the screen movement?
The screen features Standard Low Voltage Control (LVC) and is compatible with accessories like the Da-Lite 10-ft SightLine Option (DL16476) or various smart wall switches.
How does this screen surface affect image quality?
The HD Progressive 1.0 surface is designed for high-resolution front projection, working with a standard black backing to retain projected brightness.
