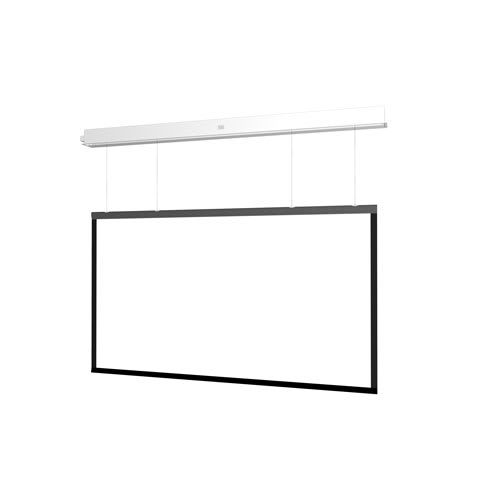

Da-Lite Advantage Series, 90" x 160" with Matte White - DL15259EBL
90" x 160" recessed electric screen with SightLine cable drop and Matte White surface
The DL15259EBL is a 90" x 160" (184" diagonal) Advantage Series ceiling recessed electric screen featuring SightLine™ cable drop technology. This large venue, front projection screen utilizes a Matte White non-tensioned surface and is configured in a 16:9 HDTV format. Designed for clean aesthetics, the SightLine system uses 3 or 4 thin cables to provide a floating screen effect, eliminating the need for a traditional black drop border and preserving architectural space for cameras or speakers. This specific SKU is the Case/Box Only for Rough-In, allowing the white powder-coated, UL Plenum rated case to be installed during the rough-in construction stage. Once the finishing stage is complete, the screen surface assembly can be integrated. The unit features a slot closure door, standard black backing to maintain brightness, and a motor rated for 220V (50Hz) for export markets. It is TAA compliant and includes standard low voltage control for flexible operation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 184 in (467.4 cm) |
| Screen Height | 90 in (228.6 cm) |
| Shipping Dimensions | 177" x 13" x 10" (449.6 x 33 x 25.4 cm) |
| Shipping Weight | 101 lbs (45.8 kg) |
| Size | 90" x 160" or 184" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236940820 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
How does the SightLine drop work with the installation height?
The SightLine cable drop allows for variable vertical placement between the ceiling and the top of the screen, accommodating standard drops up to 70" or an optional 10' drop via part number DL16476.
What is required for the rough-in stage of this screen?
This SKU is the Case/Box Only for Rough-In, meaning the housing is installed during construction to be concealed by ceiling trim, while the screen surface is attached during the finishing stage.
What controls are compatible with this DL15259EBL screen?
The unit features standard low voltage control. You can add a Da-Lite Screen Controller (DL15316) or more advanced options like the DL16522 RF (BLE) Remote controller.
Will this screen work for front projection in large venues?
Yes, this is a Large Venue front projection screen featuring a non-tensioned Matte White surface with black backing to help retain projected brightness.
Is this product TAA compliant for government projects?
Yes, this model is TAA compliant and features a US-made Federal Ops country of origin.
