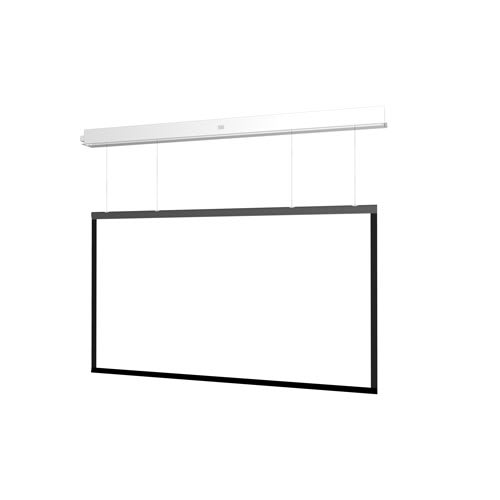

Da-Lite Advantage Series, 90" x 160" with High Contrast Matte White - DL15260EFL
90" x 160" (184" diagonal) recessed electric projection screen with High Contrast Matte White surface and SightLine™ cable drop
The Da-Lite DL15260EFL is a 90" x 160" (184" diagonal) electric projection screen from the Advantage Series, specifically designed for ceiling recessed applications. This unit features a High Contrast Matte White surface that is non-tensioned, paired with a standard black backing to help retain projected brightness on front projection surfaces. The SightLine™ cable drop system utilizes a single roller design with 3 or 4 thin cables, creating a floating appearance and eliminating the need for a traditional black drop border. This design allows for variable vertical placement, accommodating standard drop distances or an optional 10-ft drop (part number DL16476) between the ceiling and the top of the screen. This specific SKU is the Surface, Roller, and Motor Assembly only; the case and box must be ordered separately. This TAA compliant model includes standard low voltage control and is intended for large venue front projection. The assembly includes a slot-style closure door and is powered by a 220V (50Hz) motor for export markets.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 184 in (467.4 cm) |
| Screen Height | 90 in (228.6 cm) |
| Shipping Dimensions | 175" x 8" x 6" (444.5 x 20.3 x 15.2 cm) |
| Shipping Weight | 70 lbs (31.8 kg) |
| Size | 90" x 160" or 184" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | High Contrast Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236940875 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
What is the vertical drop distance for the SightLine cable system?
The cables accommodate a standard drop distance of up to 70" or an optional 10-ft drop using part number DL16476.
Does this screen include the ceiling housing?
No, this SKU (DL15260EFL) is for the surface, roller, and motor assembly only; the case must be ordered separately.
What control options are compatible with this screen?
This unit includes standard low voltage control and is compatible with various controllers, such as the Da-Lite DL16522 RF (BLE) remote or the DL16521 PoE injector.
Is this screen suitable for recessed ceiling installation?
Yes, it is designed for ceiling recessed applications and features sliding installation brackets for flexible attachment to the structure above a drop ceiling.
Can I add a locking mechanism to the wall switch?
Yes, the Da-Lite DL15316 or the DL98837 Locking Switch Cover Plate can be used with your installation.
