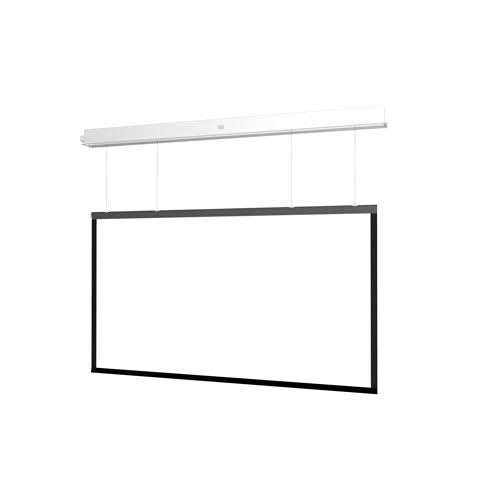

Da-Lite Advantage Series, 87" x 139" with Matte White - DL15273EBL
Ceiling recessed electric screen with SightLine cable drop, 87" x 139" dimensions, and Matte White non-tensioned surface
The Da-Lite DL15273EBL is an Advantage Series ceiling recessed electric screen designed for high-impact large venue environments. Featuring a 164" diagonal, 87" x 139" screen size with a 16:10 wide aspect ratio, this unit utilizes SightLine cable drop technology. This suspension system uses 3 or 4 thin cables to create the appearance of a floating screen, eliminating the need for a traditional black drop border. This specific model is configured for export, featuring a 220V (50Hz) motor and is TAA compliant. The unit is designed for front projection onto a Matte White non-tensioned surface with standard resolution. Installation is streamlined via a two-stage process where the white powder-coated, UL Plenum rated case can be installed during the rough-in stage, leaving the screen surface assembly for the final finishing stage. The sliding installation brackets provide mounting flexibility for attachment to the structure above a drop ceiling. This model is a Case/Box Only for Rough-In selection, featuring a slot-style closure door and standard low voltage control.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 164 in (416.6 cm) |
| Screen Height | 87 in (221 cm) |
| Shipping Dimensions | 158" x 13" x 10" (401.3 x 33 x 25.4 cm) |
| Shipping Weight | 74 lbs (33.6 kg) |
| Size | 87" x 139" or 164" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236941384 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
Will this Da-Lite screen fit my existing ceiling cutout?
The DL15273EBL is a Case/Box Only for Rough-In selection, allowing you to install the housing during construction and the surface during final finishing.
What is required for the SightLine cable drop installation?
The SightLine system accommodates a standard drop distance of up to 70" between the ceiling and the top of the screen, or an optional 10' drop using part DL16476.
Does this model include a remote or wall switch?
This SKU includes standard low voltage control; additional controllers like the RF (BLE) remote (DL16522) or Infrared remote (DL16524) must be purchased separately.
Can I adjust the vertical placement of the screen after installation?
Yes, the SightLine cable system allows for variable vertical placement to accommodate different drop distances and preserve architectural interests.
What documentation is available for submittals?
You can access the Advantage Series Specification Sheet, Product Information Sheet, and CAD/BIM models in the Resources tab for technical submittals.
