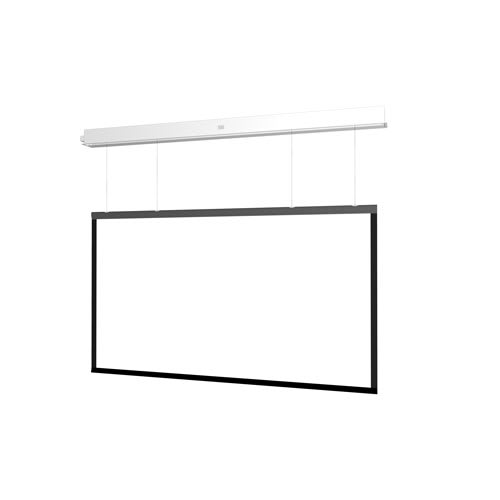

Da-Lite Advantage Series, 87" x 139" with High Contrast Matte White - DL15274EBL
Recessed ceiling electric screen with 164" diagonal, SightLine™ cable drop, and High Contrast Matte White surface
The Da-Lite DL15274EBL is an Advantage Series ceiling recessed electric screen designed for large venue environments. This 164 in (416.6 cm) diagonal screen features an 87 in (221 cm) height and a 16:10 wide screen format. It utilizes the SightLine™ cable drop system, which employs 3 or 4 thin cables to create the appearance of a floating screen by eliminating the need for a traditional black drop border. The High Contrast Matte White surface is non-tensioned and features a standard black backing to maximize projected brightness for front projection applications. This unit is TAA compliant and features a 220V (50Hz) motor designed for export. The white powder-coated case is UL Plenum rated and includes a slot-style closure door. Because this is the Case/Box Only for Rough-In version, it is specifically configured to allow for a two-stage installation where the housing is mounted during the rough-in construction phase and the surface assembly is installed during finishing.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 164 in (416.6 cm) |
| Screen Height | 87 in (221 cm) |
| Shipping Dimensions | 158" x 13" x 10" (401.3 x 33 x 25.4 cm) |
| Shipping Weight | 74 lbs (33.6 kg) |
| Size | 87" x 139" or 164" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | High Contrast Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236941421 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
Will this Da-Lite DL15274EBL fit my 16:10 projection setup?
Yes, this model is specifically designed for a Wide 16:10 screen format with a 164 in (416.6 cm) diagonal.
What do I need to buy for the screen controller?
The DL15274EBL includes standard low voltage control. Additional options include RF (BLE) remotes like the DL16522 or infrared remotes like the DL16524.
How does the SightLine cable drop work for installation?
The SightLine system uses thin cables to eliminate the need for a black border, providing a floating appearance. Standard drop distances are up to 70" (standard), with a 10' option available via part DL16476.
What is the difference between this and the standard Advantage Electrol?
This SKU is the Advantage Deluxe Electrol version which includes a closure door and is designated as Case/Box Only for Rough-In.
Which document should I use for a project submittal?
The Advantage Series Specification Sheet (PDF) is the primary document for technical submittals and project planning.
