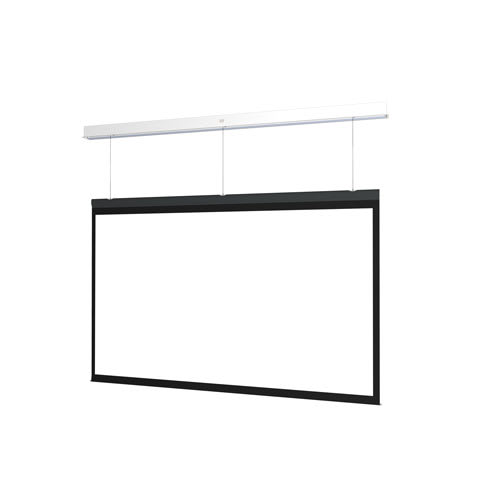

Da-Lite Advantage Series, 69" x 110" with Matte White - DL15269ELS
Ceiling recessed electric screen with SightLine™ cable drop, 69" x 110" dimensions, and matte white surface
The Da-Lite DL15269ELS is an Advantage Series ceiling recessed electric screen designed for high-end architectural integration. This 130 in (330.2 cm) diagonal screen features a 69 in (175.3 cm) height and a wide 16:10 screen format. It utilizes the SightLine™ drop type, which uses a suspension system with thin cables to provide the appearance of a floating screen, eliminating the need for a traditional black border. This configuration creates usable space above the viewing area for speaker or camera placement. This specific model is configured with a 220V (50Hz) motor intended for export and includes standard low voltage control for flexible operation. The non-tensioned matte white surface is backed by black to maintain projected brightness during front projection. The unit is TAA compliant and features a white powder-coated case with a slot closure door. For installers, the two-stage design allows the case to be installed during rough-in and the surface assembly during the finishing stage.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 130 in (330.2 cm) |
| Screen Height | 69 in (175.3 cm) |
| Shipping Dimensions | 128" x 13" x 10" (325.1 x 33 x 25.4 cm) |
| Shipping Weight | 114 lbs (51.7 kg) |
| Size | 69" x 110" or 130" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236910083 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
How does the SightLine drop affect the installation height?
The SightLine suspension system allows for variable vertical placement, accommodating standard drop distances up to 70 in (1778 mm) between the ceiling and the top of the screen.
What is required for a complete installation of the DL15269ELS?
This is a complete screen. For additional control options, you can add accessories like the DL16521 Screen Controller with a PoE Injector or the DL16522 RF (BLE) Remote Controller.
Is this screen suitable for commercial plenum environments?
Yes, this model features a UL plenum rated case, making it suitable for such environments.
Can I control the screen with a remote instead of the wall switch?
While it includes standard low voltage control and a Decora-style wall switch, you can add a Da-Lite Screen Controller, such as the DL16524 with an infrared remote, to enable remote operation.
Which projection type is this screen designed for?
The DL15269ELS is designed for front projection using a matte white, non-tensioned surface.
