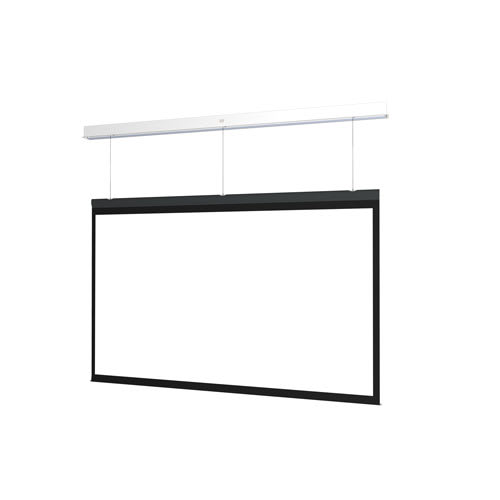

Da-Lite Advantage Series, 69" x 110" with Matte White - DL15269EFLS
Ceiling recessed electric screen with SightLine cable drop, 69" x 110" surface, and 16:10 wide format
The DL15269EFLS is a ceiling recessed electric screen from the Da-Lite Advantage Series, featuring a 69" x 110" Matte White non-tensioned surface. This 130" diagonal screen is configured for front projection in a wide 16:10 aspect ratio. Utilizing the SightLine™ cable drop system, this model employs a single roller design with 3 or 4 thin cables to create a floating appearance, eliminating the need for traditional black drop borders. This configuration preserves architectural interest and provides usable space above the viewing area for speakers or cameras. This SKU is the surface, roller, and motor assembly only; the case or box must be ordered separately. Designed for large venue applications, this model includes standard low voltage control and is TAA compliant. The 220V (50Hz) motor is intended for export markets. For installation in a recessed application, the two-stage design allows the case to be installed during rough-in construction, while the surface assembly is installed during the finishing stage. The white powder-coated case includes a slot-style closure door and a standard black backing to maintain projected brightness.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 130 in (330.2 cm) |
| Screen Height | 69 in (175.3 cm) |
| Shipping Dimensions | 123" x 8" x 6" (312.4 x 20.3 x 15.2 cm) |
| Shipping Weight | 51 lbs (23.1 kg) |
| Size | 69" x 110" or 130" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236941230 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
Does the DL15269EFLS include the mounting case?
No, this SKU is the surface, roller, and motor assembly only. The case or box must be ordered separately as part of the full assembly.
What is the vertical drop distance for the SightLine system?
The SightLine feature allows for a variable vertical placement. The cables accommodate standard drop distances up to 70" or an optional 10' drop via part number DL16476.
What controls are compatible with this screen?
This unit features standard low voltage control. You can add a Da-Lite Screen Controller with RF (BLE) Remote (DL16522) or an Infrared Remote (DL16524) for added flexibility.
Is this screen suitable for plenum-rated environments?
Yes, this model features a UL Plenum rated case, making it suitable for many commercial ceiling applications.
Which document should I use for installation and submittals?
For installation, refer to the Advantage Series Instructions PDF. For technical submittals, the Advantage Series Specification Sheet provides detailed data.
