Da-Lite Advantage Series, 69" x 110" with High Contrast Matte White - DL15270LS
Ceiling recessed electric screen with High Contrast Matte White surface, SightLine cable drop, and 69" x 110" dimensions
The Da-Lite DL15270LS is a ceiling recessed electric projection screen from the Advantage Series designed for front projection applications. This 69" x 110" screen features a 130" diagonal measurement and utilizes a Wide 16:10 screen format. It is engineered with SightLine cable drop technology, which employs 3 or 4 thin cables to suspend the surface, providing a floating appearance and eliminating the need for a traditional black border or drop. The High Contrast Matte White surface is non-tensioned and features standard resolution capabilities, backed by a standard black backing to maintain projected brightness. This unit operates via a standard 120V (60Hz) motor and includes standard low voltage control. For installation, the Advantage Series allows for a two-stage process: the UL Plenum rated white powder-coated case can be installed during rough-in construction, while the screen surface assembly is added during the finishing stage. The SightLine system provides variable vertical placement, accommodating a standard drop distance of up to 70" between the ceiling and the top of the screen.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 130 in (330.2 cm) |
| Screen Height | 69 in (175.3 cm) |
| Shipping Dimensions | 128" x 13" x 10" (325.1 x 33 x 25.4 cm) |
| Shipping Weight | 114 lbs (51.7 kg) |
| Size | 69" x 110" or 130" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | High Contrast Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236910113 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00

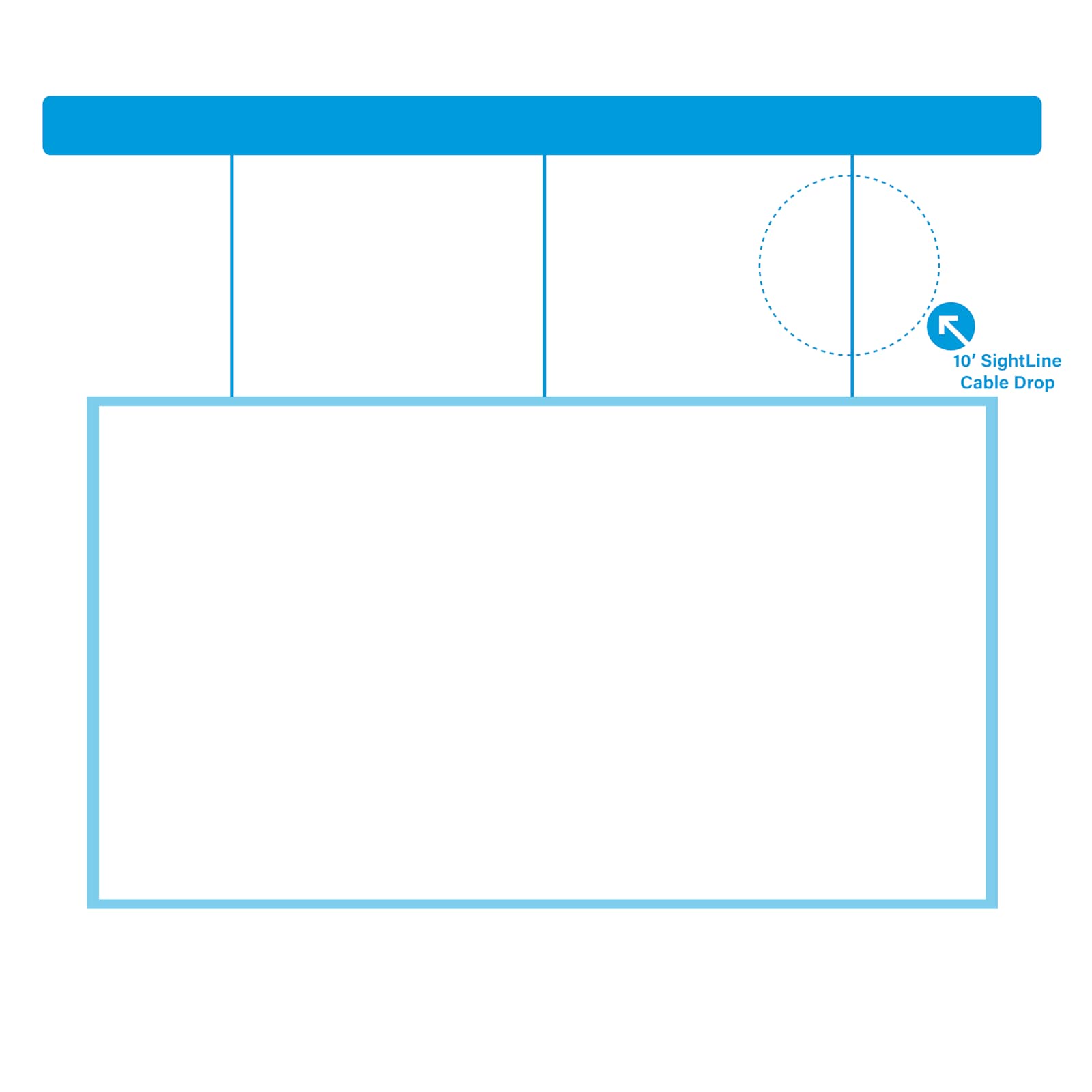

Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
How does the SightLine cable drop work on the DL15270LS?
The SightLine system uses 3 or 4 thin cables to suspend the screen, creating a floating appearance and eliminating the need for a black border above the projection surface.
Can I adjust the vertical drop distance for this screen?
Yes, the cables accommodate a variable drop distance of up to 70" from the ceiling to the top of the screen, which helps preserve architectural interests or allow for speaker placement.
What is the difference between this and the Advantage Deluxe Electrol?
This DL15270LS model features the SightLine cable drop and a slot closure door, whereas the Advantage Deluxe Electrol is a different configuration within the Advantage Series.
What tools and accessories are needed for installation and control?
Installation requires a Decora-style three-button wall switch included with the unit. For remote operation, you can add a Da-Lite Screen Controller like the DL16521 or DL16522.
Is this screen suitable for plenum ceiling installations?
Yes, the case is UL Plenum rated, making it suitable for environments requiring compliance with plenum air handling requirements.
