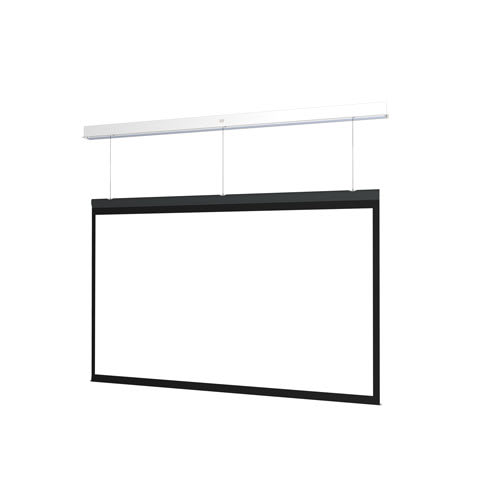

Da-Lite Advantage Series, 65" x 104" with Matte White - DL15267EBLS
Ceiling recessed electric screen with SightLine™ cable drop, 65" x 104" dimensions and Matte White surface
The Da-Lite DL15267EBLS is an Advantage Series ceiling recessed electric screen designed for high-end architectural integration. Featuring a 65" x 104" (123 in (312.4 cm) diagonal) Matte White non-tensioned surface, this screen is optimized for front projection in large venue applications. This specific SKU is provided as the Case/Box Only for Rough-In, allowing the housing to be installed during the construction stage and the screen surface assembly to be completed during the finishing stage. The SightLine™ cable drop system uses thin suspension cables to provide a floating appearance, eliminating the need for a traditional black drop border. This configuration uses a 220V (50Hz) motor for export markets and includes standard low voltage control. The TAA compliant unit features a white powder-coated case and a slot closure door. The screen uses a 16:10 wide format and is built with a standard resolution surface for clear projection.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 123 in (312.4 cm) |
| Screen Height | 65 in (165.1 cm) |
| Shipping Dimensions | 123" x 13" x 10" (312.4 x 33 x 25.4 cm) |
| Shipping Weight | 112 lbs (50.8 kg) |
| Size | 65" x 104" or 123" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236941148 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
Will the DL15267EBLS fit my ceiling configuration?
This is the Case/Box Only for Rough-In version, designed to be installed during the construction stage to conceal the rough opening with ceiling trim.
How do I adjust the vertical drop distance of this screen?
The SightLine™ system allows for variable vertical placement; the cables accommodate a standard drop distance of up to 70" (1778 mm) between the ceiling and the screen top.
What control options are compatible with this screen?
This unit includes standard low voltage control and is compatible with accessories like the DL16522 RF (BLE) Remote or the DL16622 Smart Low Voltage Wall Switch.
Is this screen TAA compliant?
Yes, this product is TAA compliant and is manufactured in the US.
Can I add a longer cable drop to the SightLine system?
Yes, you can utilize the DL16476 10-ft SightLine Option for increased vertical clearance.
