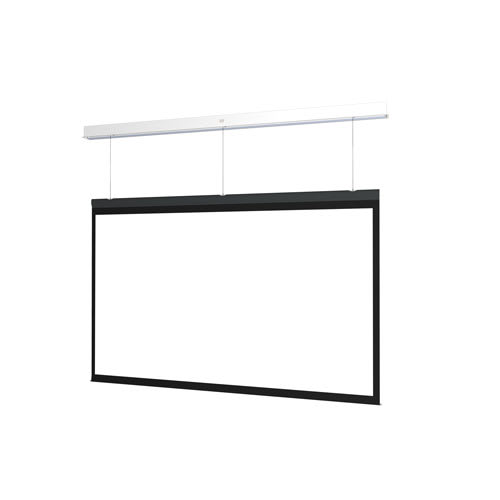

Da-Lite Advantage Series, 65" x 104" with High Contrast Matte White - DL15268ELS
Recessed electric screen with 65" x 104" surface, SightLine™ cable drop, and High Contrast Matte White finish
The Da-Lite DL15268ELS is a recessed electric screen from the Advantage Series, designed to provide a clean, integrated look by concealing the rough opening with its built-in ceiling trim. This 65" x 104" (123" diagonal) screen is configured for wide 16:10 format front projection. It features the SightLine™ cable drop system, which utilizes three or four thin cables to suspend the screen surface. This design eliminates the need for a traditional black drop border, creating a floating effect and allowing for adjustable vertical placement between the ceiling and the top of the screen. The installation is versatile; the screen case can be installed during the rough-in construction stage, while the surface assembly is mounted during the finishing stage. This SKU features a High Contrast Matte White non-tensioned surface and includes a white powder-coated case. For international installations, this model is equipped with a 220V (50Hz) motor and includes standard low voltage control.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 123 in (312.4 cm) |
| Screen Height | 65 in (165.1 cm) |
| Shipping Dimensions | 123" x 13" x 10" (312.4 x 33 x 25.4 cm) |
| Shipping Weight | 112 lbs (50.8 kg) |
| Size | 65" x 104" or 123" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | High Contrast Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236910069 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
How does the SightLine™ system affect the screen installation?
The SightLine™ system uses a single roller design with 3 or 4 thin cables to suspend the screen, which eliminates the need for a black drop border. It also allows the vertical placement to be variable, accommodating a standard drop distance of up to 70" or an optional 10' drop with part DL16476.
What is required for the ceiling installation of the DL15268ELS?
This is a ceiling recessed application. The Advantage Series features built-in ceiling trim to conceal the rough opening, and sliding installation brackets allow for flexible attachment to the structure above a drop ceiling.
Does this screen include a remote control or wall switch?
This model comes with standard low voltage control and a Decora-style, three-button wall switch. For wireless operation, you can add compatible controllers like the Da-Lite DL16522 (RF/BLE) or DL16524 (Infrared).
Can I adjust the height of the screen after it is installed?
Yes, the SightLine™ suspension system allows for vertical placement variability. Because the cables accommodate different drop distances, the height of the screen can be adjusted during installation.
Is the DL15268ELS suitable for government contracts?
Yes, this product is TAA Compliant and is manufactured in the US.
