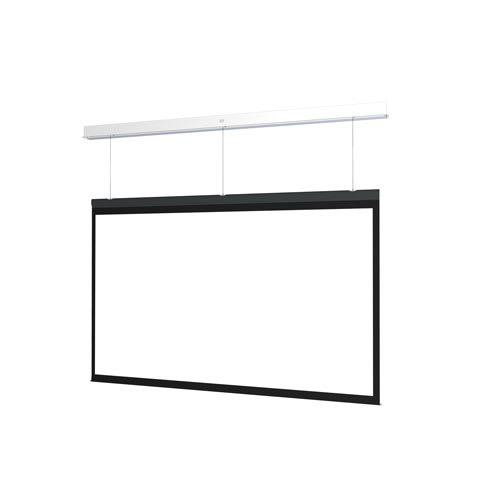

Da-Lite Advantage Series, 65" x 104" with High Contrast Matte White - DL15268EBLS
Recessed electric projection screen with High Contrast Matte White surface, SightLine™ cable drop, and 65" x 104" dimensions
The DL15268EBLS is a Da-Lite Advantage Series electric projection screen designed for ceiling recessed installation. This 65" x 104" (123" diagonal) unit features a Wide 16:10 screen format and utilizes a High Contrast Matte White non-tensioned surface. Utilizing SightLine™ technology, the screen employs a suspension system with 3 or 4 thin cables that provide the appearance of a floating screen, eliminating the need for a traditional black drop border. The series is designed for two-stage installation; the case can be installed during the rough-in construction stage, while the screen surface assembly is installed during the finishing stage. This specific model features a motor with built-in 220V (50Hz) for export and standard low voltage control. The white powder-coated case is UL Plenum rated, and the unit includes a slot-style closure door. For high-performance projection, the standard black backing helps retain brightness on the front projection surface.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 123 in (312.4 cm) |
| Screen Height | 65 in (165.1 cm) |
| Shipping Dimensions | 123" x 13" x 10" (312.4 x 33 x 25.4 cm) |
| Shipping Weight | 112 lbs (50.8 kg) |
| Size | 65" x 104" or 123" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | High Contrast Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236941186 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
Will the DL15268EBLS fit my ceiling installation?
This is a ceiling recessed model designed for installation during the rough-in stage, featuring sliding brackets for flexible mounting above drop ceilings.
Can I adjust the vertical drop distance for the SightLine screen?
Yes, the SightLine cable system allows for variable vertical placement, accommodating standard drops up to 70" or an optional 10' drop with part DL16476.
What is required to control this screen?
The unit includes standard low voltage control, which can be supplemented with a Decora-style three-button wall switch or accessories like the DL16522 RF remote.
Is the DL15268EBLS TAA compliant?
Yes, this product is TAA compliant and is manufactured in the US.
What accessories are compatible with this Advantage Series screen?
You can add specialized controls such as the DL16521 PoE injector or the DL16524 infrared remote for expanded operational flexibility.
