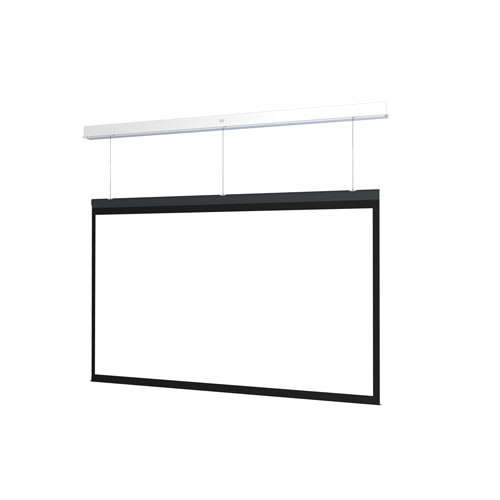

Da-Lite Advantage Series, 58" x 104" with Matte White - DL15253LS
Recessed electric screen with SightLine™ cable drop, 58" x 104" dimensions, and Matte White non-tensioned surface
The Da-Lite DL15253LS is an Advantage Series recessed electric screen designed for ceiling installation. This 58" x 104" (119" diagonal) screen features a Matte White non-tensioned surface and a 16:9 HDTV format. A standout feature is the SightLine™ cable drop system, which utilizes a single roller design with thin cables to create a floating effect, eliminating the need for traditional black drop borders. This suspension system allows for variable vertical placement, accommodating a standard drop distance of up to 70" between the ceiling and the top of the screen. The DL15253LS includes standard 120V (60Hz) motorization with built-in standard low voltage control. For installation flexibility, the case is UL Plenum rated and features a white powder-coated finish. This unit is TAA compliant and manufactured in the US, making it suitable for various professional AV environments where a clean, integrated look is required.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 119 in (302.3 cm) |
| Screen Height | 58 in (147.3 cm) |
| Shipping Dimensions | 123" x 13" x 10" (312.4 x 33 x 25.4 cm) |
| Shipping Weight | 110 lbs (49.9 kg) |
| Size | 58" x 104" or 119" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236909773 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
Will this screen work in a recessed ceiling installation?
Yes, the DL15253LS is designed specifically for ceiling recessed applications and features sliding installation brackets for flexible mounting above drop ceilings.
What is the maximum drop distance for the SightLine feature?
The standard SightLine cable drop accommodates a vertical placement range of up to 70" between the ceiling and the top of the screen.
Does this screen require a black border above the surface?
No, the SightLine™ suspension system uses a single roller design with thin cables that eliminate the need for a black drop border.
What control options are available for this Da-Lite screen?
The DL15253LS includes standard low voltage control and is compatible with accessories like the DL16523 Controller with PoE Injector or the DL16522 RF (BLE) Remote Controller.
Is this product TAA compliant?
Yes, the DL15253LS is TAA compliant and is manufactured in the US.
