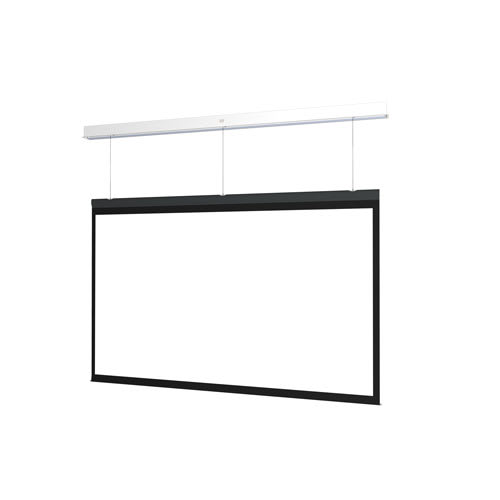

Da-Lite Advantage Series, 57.5" x 92" with High Contrast Matte White - DL15264FLS
Recessed electric screen with 57.5" x 92" surface, SightLine™ cable drop, and High Contrast Matte White finish
The Da-Lite DL15264FLS is a recessed electric screen from the Advantage Series, specifically configured for large venue applications. This 109 in (276.9 cm) diagonal screen features a 57.5 in (146.1 cm) height and a Wide 16:10 aspect ratio. It utilizes a High Contrast Matte White non-tensioned surface designed for front projection, supported by a standard black backing to maintain brightness. This unit utilizes the SightLine™ cable drop system, which employs 3 or 4 thin cables to create a floating appearance, eliminating the need for a traditional black drop border. The motor is a standard 120V (60Hz) model with built-in standard low voltage control, and the assembly includes a slot closure door. This SKU is provided as a Surface, Roller, and Motor Assembly Only; the case and box must be ordered separately. Built with a white powder-coated, UL Plenum rated case, this TAA compliant screen is designed for ceiling recessed installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 109 in (276.9 cm) |
| Screen Height | 57.5 in (146.1 cm) |
| Shipping Dimensions | 109" x 13" x 10" (276.9 x 33 x 25.4 cm) |
| Shipping Weight | 34 lbs (15.4 kg) |
| Size | 57.5" x 92" or 109" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | High Contrast Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236941049 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
Will this screen work with my ceiling installation?
Yes, this is a ceiling recessed application designed for a two-stage installation. You can install the case during rough-in construction and the surface assembly during the finishing stage using the sliding installation brackets.
Does this include the housing and case?
No, this specific SKU is the Surface, Roller, and Motor Assembly Only. You must order the compatible case and box separately to complete the installation.
Can I adjust the drop distance after installation?
Yes. The SightLine™ cable drop system allows for variable vertical placement. The standard cables accommodate a range of drop distances up to 70" between the ceiling and the top of the screen.
What control options are available for the motor?
This model includes standard low voltage control. You can expand functionality by adding accessories like the DL16622 Smart Low Voltage Wall Switch or the DL16522 RF (BLE) Remote Controller.
Which documents are available for submittals?
Technical submittals can be supported using the Advantage Series Specification Sheet, the Product Information Sheet, or the available BIM and CAD models found in the resources section.
