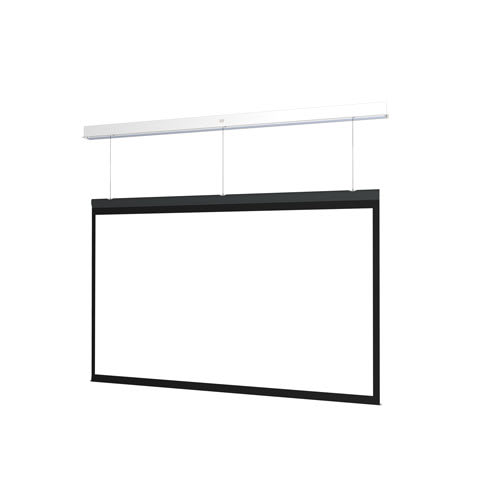

Da-Lite Advantage Series, 57.5" x 92" with High Contrast Matte White - DL15264BLS
Recessed electric screen with SightLine™ cable drop, 57.5" x 92" (109" diagonal) and High Contrast Matte White surface
The DL15264BLS is a Da-Lite Advantage Series ceiling recessed electric screen designed for large venue applications. This 109" diagonal (57.5" x 92") projection surface features a High Contrast Matte White non-tensioned finish and is configured in a 16:10 wide format. This specific model is the Case/Box Only for Rough-In, allowing the housing to be installed during the construction phase while the surface assembly is handled during final finishing. It utilizes SightLine™ cable drop technology, which employs a single roller design with thin suspension cables. This system provides a floating screen appearance and eliminates the need for a traditional black drop border. The standard 120V (60Hz) motor includes built-in low voltage control, which is compatible with a Decora-style three-button wall switch. For installation, this UL Plenum rated case features a white powder-coated finish and a slot closure door. The screen is TAA compliant and designed for front projection setups.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 109 in (276.9 cm) |
| Screen Height | 57.5 in (146.1 cm) |
| Shipping Dimensions | 111" x 13" x 10" (281.9 x 33 x 25.4 cm) |
| Shipping Weight | 98 lbs (44.5 kg) |
| Size | 57.5" x 92" or 109" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | High Contrast Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236941018 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
Will the DL15264BLS fit my 16:10 display setup?
Yes, this screen is specifically configured for a 16:10 wide format with a 109" (276.9 cm) diagonal and 57.5" (146.1 cm) height.
What is the installation requirement for this recessed screen?
This is the Case/Box Only for Rough-In version. It is designed for ceiling recessed application, allowing the housing to be installed during construction.
What are the control options for the DL15264BLS?
It features standard low voltage control (LVC). You can add accessory controllers like the DL16522 for RF (BLE) remotes or the DL16524 for Infrared remotes.
Does this screen require a black border for front projection?
No. The SightLine™ cable drop feature uses a suspension system with thin cables that eliminates the need for a black drop border.
Can I adjust the vertical drop distance of the screen?
Yes. The cables accommodate a standard drop distance of up to 70" (standard) or a 10' option (part DL16476) between the ceiling and the top of the screen.
