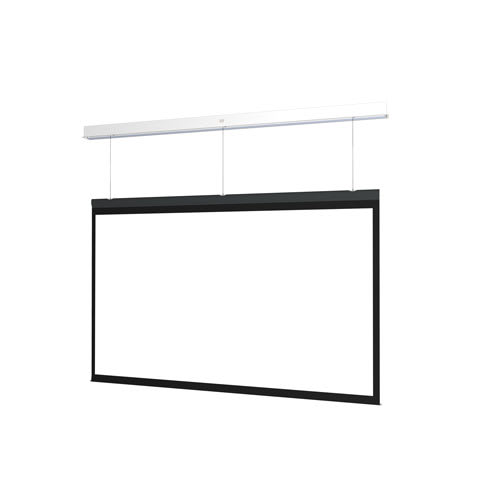

Da-Lite Advantage Series, 52" x 92" with Matte White - DL15249EBLS
Ceiling recessed electric screen with SightLine cable drop, 52" x 92" Matte White surface, and 220V motor
The Da-Lite DL15249EBLS is a ceiling recessed electric screen from the Advantage Series designed to conceal the rough opening with integrated trim. This specific SKU features a 52" x 92" (132.1 x 233.7 cm) Matte White non-tensioned surface in a 16:9 HDTV format. It utilizes the SightLine cable drop system, which employs 3 or 4 thin cables to create a floating appearance, eliminating the need for a traditional black drop border. This installation option provides a vertical drop range of up to 70" (177.8 mm) between the ceiling and the top of the screen. The unit is equipped with a 220V (50Hz) motor for export markets and includes standard low voltage control. This model is a Case/Box Only for Rough-In selection, intended for large venue environments. The TAA compliant construction includes a UL plenum rated white powder-coated case with a slot closure door and standard black backing to maximize projected brightness.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 106 in (269.2 cm) |
| Screen Height | 52 in (132.1 cm) |
| Shipping Dimensions | 109" x 13" x 10" (276.9 x 33 x 25.4 cm) |
| Shipping Weight | 99 lbs (44.9 kg) |
| Size | 52" x 92" or 106" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236940424 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
What is the viewable screen size and format for the DL15249EBLS?
This model has a 52" x 92" (132.1 x 233.7 cm) dimension with a 106" (269.2 cm) diagonal and a 16:9 HDTV screen format.
How does the SightLine cable drop work for installation?
The SightLine system uses 3 or 4 thin cables to suspend the screen, providing a floating appearance. It accommodates a standard vertical drop distance of up to 70" between the ceiling and the top of the screen.
What accessories are compatible with the Advantage Series screen?
You can add various controllers such as the DL16521 PoE Injector version, the DL16522 RF (BLE) Remote controller, or the DL16524 Infrared Remote controller.
Is the DL15249EBLS suitable for plenum environments?
Yes, this screen features a UL plenum rated case, making it suitable for specific air-handling requirements.
Which document is required for the submittal process?
Installers can use the Advantage Series Specification Sheet (PDF) for technical submittals or the Advantage Series CAD Models for architectural integration.
