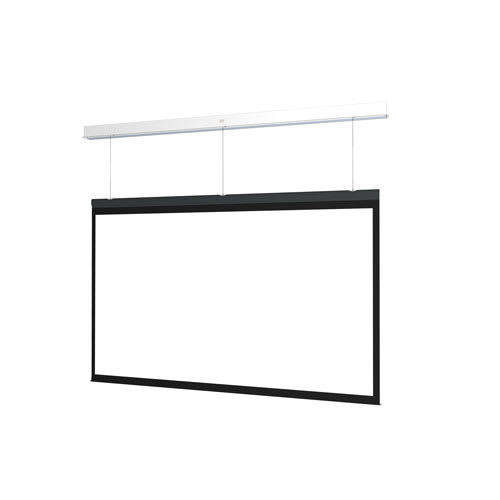

Da-Lite Advantage Series, 52" x 92" with High Contrast Matte White - DL15250EBLS
Ceiling recessed electric screen, 52" x 92" (106" diagonal), featuring SightLine cable drop and high contrast matte white surface
The DL15250EBLS is a Da-Lite Advantage Series ceiling recessed electric screen designed for seamless integration into finished ceilings. This unit features a 52" x 92" screen size (106" diagonal) with a high contrast matte white surface optimized for front projection. A key feature of this model is the SightLine cable drop system, which uses a single roller design with thin cables to create a floating appearance, eliminating the need for traditional black drop borders. This system provides a vertical drop range between the ceiling and the top of the screen of up to 70" (standard), though a 10-ft option (DL16476) is available. This screen is intended for large venue applications and utilizes a standard low voltage control motor designed for 220V (50Hz) export markets. The white powder-coated case is UL plenum rated and includes a slot-style closure door. This specific SKU is the case and screen assembly for the rough-in stage, providing a finished look once the surface assembly is installed.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 106 in (269.2 cm) |
| Screen Height | 52 in (132.1 cm) |
| Shipping Dimensions | 109" x 13" x 10" (276.9 x 33 x 25.4 cm) |
| Shipping Weight | 99 lbs (44.9 kg) |
| Size | 52" x 92" or 106" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | High Contrast Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236940462 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
Will this Da-Lite DL15250EBLS screen fit my ceiling installation?
Yes, this is a ceiling recessed application designed for installation during the finishing stage, utilizing sliding mounting brackets for flexibility above drop ceilings.
Can I adjust the vertical drop distance of the SightLine cables?
The standard SightLine system accommodates a vertical drop of up to 70" between the ceiling and the top of the screen; a 10-ft option (DL16476) is also available.
What electrical requirements are needed for the DL15250EBLS motor?
This specific model is equipped with a 220V (50Hz) motor intended for export markets and features built-in standard low voltage control.
What additional controllers are compatible with this screen?
Compatible accessories include the DL15316 Screen Controller, DL16525 (with IR remote and PoE), or the DL16522/DL16523 RF (BLE) remote options.
Is the DL15250EBLS TAA compliant for government projects?
Yes, this product is TAA compliant and the case is UL plenum rated, making it suitable for many professional and institutional environments.
