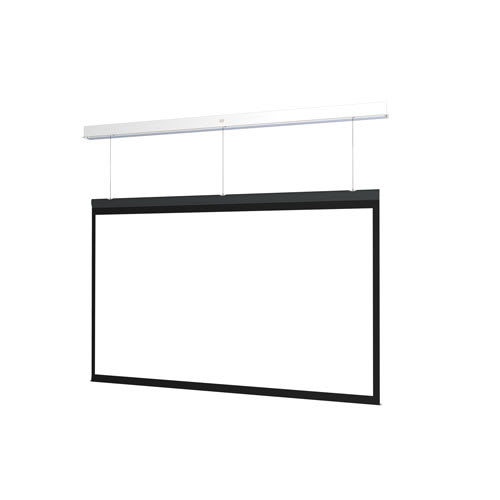

Da-Lite Advantage Series, 50" x 80" with Matte White - DL15261FLS
94" diagonal matte white electric screen with SightLine cable drop for recessed ceiling installation
The Da-Lite DL15261FLS is an Advantage Series ceiling recessed electric screen designed for high-end architectural integration. This unit features a 50" x 80" wide (16:10) matte white non-tensioned surface optimized for front projection. It utilizes the SightLine cable drop system, which employs a single roller design with 3 or 4 thin cables to provide a floating screen appearance and eliminate the need for a traditional black drop border. This specific SKU is the surface, roller, and motor assembly only; the screen case and box must be ordered separately. Built for large venues, this TAA compliant screen is UL plenum rated and features a white powder-coated case. It is engineered for two-stage installation, allowing the case to be installed during rough-in and the surface assembly during finishing. The motor operates on standard 120V (60Hz) and includes standard low voltage control.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 94 in (238.8 cm) |
| Screen Height | 50 in (127 cm) |
| Shipping Dimensions | 92" x 7" x 8" (233.7 x 17.8 x 20.3 cm) |
| Shipping Weight | 23 lbs (10.4 kg) |
| Size | 50" x 80" or 94" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236940929 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Locking Switch Cover Plate
98837$102.40
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
Will the DL15261FLS fit my ceiling installation?
This is a ceiling recessed unit designed for use with the Advantage Series case. It features sliding installation brackets for mounting the housing to the structure above a drop ceiling.
What is included in the shipping box for the DL15261FLS?
This SKU is the surface, roller, and motor assembly only. The screen case and box must be ordered separately to complete the installation.
How much vertical adjustment does the SightLine system offer?
The SightLine cable drop allows for variable vertical placement, accommodating a standard drop distance of up to 70" between the ceiling and the top of the screen.
What controls are compatible with this screen?
This model includes standard low voltage control and is compatible with accessories like the DL16521 PoE injector or the DL16622 Smart Low Voltage Wall Switch.
Is this screen TAA compliant for government projects?
Yes, the DL15261FLS is TAA compliant and the case is UL plenum rated.
