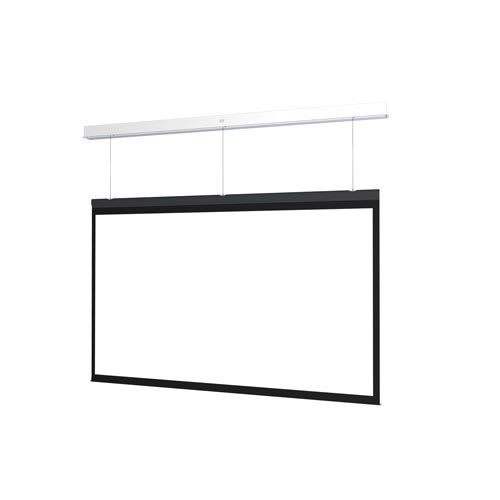

Da-Lite Advantage Series, 50" x 80" with Matte White - DL15261BLS
Ceiling recessed electric screen with SightLine cable drop, 50" x 80" surface, and Matte White finish
The Da-Lite DL15261BLS is a 50" x 80" (94" diagonal) Advantage Series ceiling recessed electric screen designed for high-end architectural integration. This model utilizes the SightLine cable drop system, which employs a single roller design with thin cables to provide the visual impression of a floating screen. By using these suspension cables, the need for a traditional black drop border is eliminated, preserving the architectural aesthetic of the room. This specific SKU is a Case/Box Only for Rough-In, allowing the installer to install the screen housing during the rough-in construction stage and the screen surface assembly during the final finishing stage. The screen features a Matte White non-tensioned surface and a Wide 16:10 aspect ratio for professional projection applications. This TAA compliant unit is powered by a standard 120V (60Hz) motor and includes built-in standard low voltage control for flexible operation. The white powder-coated case includes a slot closure door and is UL plenum rated for ceiling installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 94 in (238.8 cm) |
| Screen Height | 50 in (127 cm) |
| Shipping Dimensions | 98" x 13" x 10" (248.9 x 33 x 25.4 cm) |
| Shipping Weight | 87 lbs (39.5 kg) |
| Size | 50" x 80" or 94" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236940899 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
How does the SightLine cable drop work on the DL15261BLS?
The SightLine system uses thin cables in a single roller design to support the screen, creating a floating effect that eliminates the need for a black drop border.
Can I adjust the vertical placement of the screen once installed?
Yes, the SightLine cables allow for variable vertical placement, accommodating standard drop distances or an optional 10-ft extension (part DL16476).
Is this screen suitable for plenum ceiling environments?
Yes, this model features a UL Plenum rated case, making it suitable for installation in plenum spaces.
What additional controls are available for this screen?
You can add various controllers, such as the DL15316, the DL16525 with infrared/PoE, or the DL16622 Smart Low Voltage Wall Switch.
What is the difference between this and the standard Advantage Electrol?
The DL15261BLS is a specific SightLine configuration within the Advantage Series, featuring the cable-supported floating screen aesthetic.
