Da-Lite Advantage Series, 45" x 80" with High Contrast Matte White - DL15248FLS
Electric ceiling recessed screen with SightLine cable drop, 45" x 80" surface, High Contrast Matte White finish

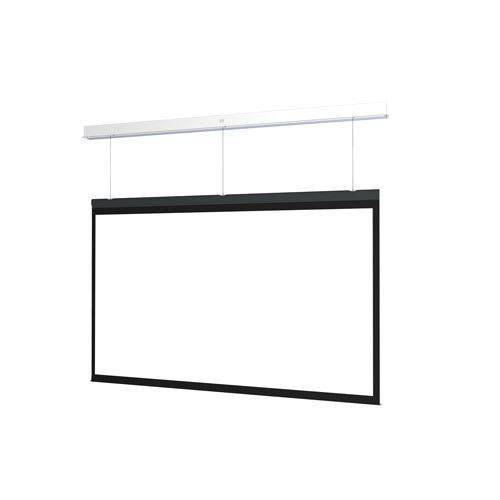

The Da-Lite DL15248FLS is an Advantage Series ceiling recessed electric screen designed for front projection in large venue environments. This 45" x 80" (92" diagonal) screen features a High Contrast Matte White non-tensioned surface and is built in a 16:9 HDTV format. Utilizing the SightLine cable drop system, this model uses 3 or 4 thin cables to provide a floating screen appearance, eliminating the need for a traditional black drop border. This design provides a 70" standard drop distance between the ceiling and the top of the screen, which can be increased to 10' with the DL16476 option. This SKU is a Surface, Roller, and Motor Assembly only; the case and box must be ordered separately. It includes standard 120V (60Hz) motorization with built-in standard low voltage control and a slot-style closure door. The white powder-coated case is UL Plenum rated.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 92 in (233.7 cm) |
| Screen Height | 45 in (114.3 cm) |
| Shipping Dimensions | 95" x 8" x 6" (241.3 x 20.3 x 15.2 cm) |
| Shipping Weight | 40 lbs (18.1 kg) |
| Size | 45" x 80" or 92" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | SightLine Cable Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | High Contrast Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236940400 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Screen Controller with Infrared Remote - DL16524
DL16524$605.60
Da-Lite Screen Controller with RF (BLE) Remote - DL16522
DL16522$660.00
Da-Lite Screen Controller with PoE Injector - DL16521
DL16521$551.20
Da-Lite Screen Controller with RF (BLE) Remote and PoE Injector - DL16523
DL16523$707.20
Da-Lite Screen Controller with Infrared Remote and PoE Injector - DL16525
DL16525$652.00
Smart Low Voltage Wall Switch
DL16622$92.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Screen Controller - DL15316
DL15316$504.00
Da-Lite 10-ft SightLine Option - DL16476
DL16476$171.20
Questions about this part
What do I need to order to complete this screen installation?
This SKU is the Surface, Roller, and Motor Assembly only. You must order the compatible case or box separately to complete the installation.
How much vertical distance can I achieve between the ceiling and the screen?
The standard SightLine cable drop allows for a 70" drop distance, but you can install the DL16476 10-ft SightLine option for a much longer drop.
Will this screen work with my existing control system?
The DL15248FLS includes standard low voltage control. You can expand functionality with accessories like the DL16522 RF (BLE) Remote or the DL16521 PoE Injector.
Is this screen suitable for plenum environments?
Yes, this series features a UL Plenum rated case, making it suitable for many commercial ceiling installations.
What is the benefit of the SightLine drop system?
The SightLine system uses thin cables instead of a black drop border, creating the impression of a floating screen and preserving architectural space above the viewing area.
