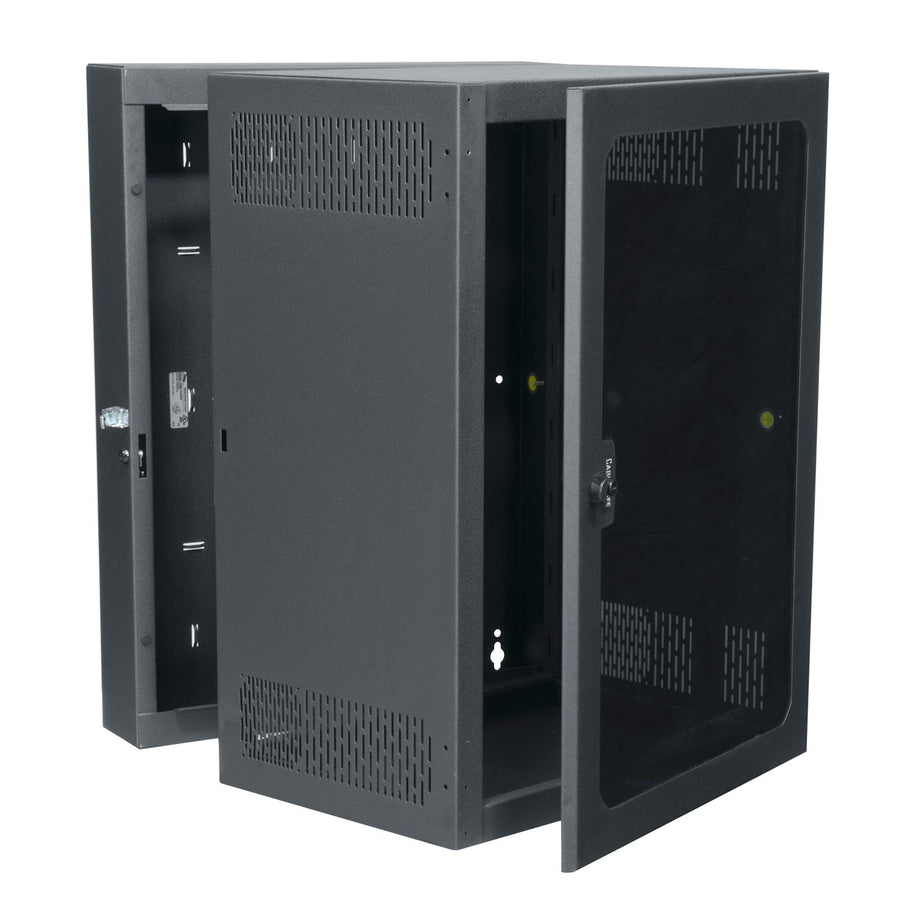

CWR Series Data Swing Wall Rack CWR-18-22PD
18 RU data swing wall rack, 22 in depth, with a locking plexi front door and wide-face rackrail for structured cabling
The CWR-18-22PD is a versatile 18 RU swing wall rack specifically engineered for structured cabling applications. This Middle Atlantic rack is designed for environments where floor and wall space are limited, allowing for the efficient mounting of multiple patch panels and various voice or data equipment. Built from welded steel, the unit features a 26 in width that provides extra space for cable management and patching. It includes a locking/latching plexiglass front door that can be reversed for either left or right-hand swing to accommodate your specific installation requirements. The rack features a locking swing-open center section, which enables both front and rear access for easier maintenance and cabling. It comes standard with an adjustable wide-face rackrail using 12-24 threaded holes. For thermal management, the unit is engineered for passive cooling, though a CWR-FKIT 95 CFM Fan Kit is available as an option to manage heat levels. This TAA compliant rack carries a UL Listed load capacity of 200 lbs (90.7 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 22 in (55.9 cm) |
| Height | 35.38 in (89.9 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 97 lbs (44 kg) |
| Rack Units | 18 RU |
| Shipping Weight | 122 lbs (55.3 kg) |
| UL Load Capacity | 200 lbs (90.7 kg) |
| Usable Depth | 20 in (50.8 cm) |
All other specifications 11
| Usable Height | 31.5 in (80 cm) |
| Width | 26 in (66 cm) |
| Available Internationally | Yes |
| Door Type | Plexi Door |
| Federal Ops Country of Origin | Mexico |
| Material | Steel |
| Rack Rail Type | 12-24 |
| Rack Type | Wall |
| TAA Compliant | Yes |
| UPC | 656747112997 |
| Certifications | CSA StandardGREENGUARDTAAUL Listed |
Resources
You'll need these with it
1 RU Mounting Rackshelf
UTR1$58.50
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A
PD-815SC-NS$188.10
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A, Basic Surge Protection - 10 ft Cord
PD-815SC$210.60
95 CFM Fan Kit for CWR Series Rack
CWR-FKIT$286.20
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection - 20 ft Cord
PD-915RC-20$264.60
1 RU Flanged Blank Rack Panel, Wrinkled
WSB1$24.30
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A, Basic Surge Protection - 20 ft Cord
PD-815SC-20$232.20
Multi-Mount PDU, 18 Outlet, 20A & 2-Stage Surge
PD-1820R-RN$432.00
1 RU Rack Vent Panel, Perforated with 64% Open Area
VT1$27.90
2 RU Utility Rackshelf, 14.55 Inches Deep
U2$95.40
Filter Kit for CWR and VWM Series
FILTER-R-4-2K$154.56
Questions about this part
What is the weight capacity of the CWR-18-22PD?
The rack has a UL Load Capacity of 200 lbs (90.7 kg).
Can the front door of this rack be reversed?
Yes, the locking plexi front door can be easily reversed to allow for either a left or right-hand swing.
What is the depth of the CWR-18-22PD rack?
The rack has a 22 in (55.9 cm) depth, providing a usable depth of 20 in (50.8 cm).
Does this rack include any mounting hardware?
Yes, this model includes a bag of 50 mounting screws.
Can I add active cooling to this rack?
While engineered for passive thermal management, a CWR-FKIT 95 CFM Fan Kit is available for this series.
