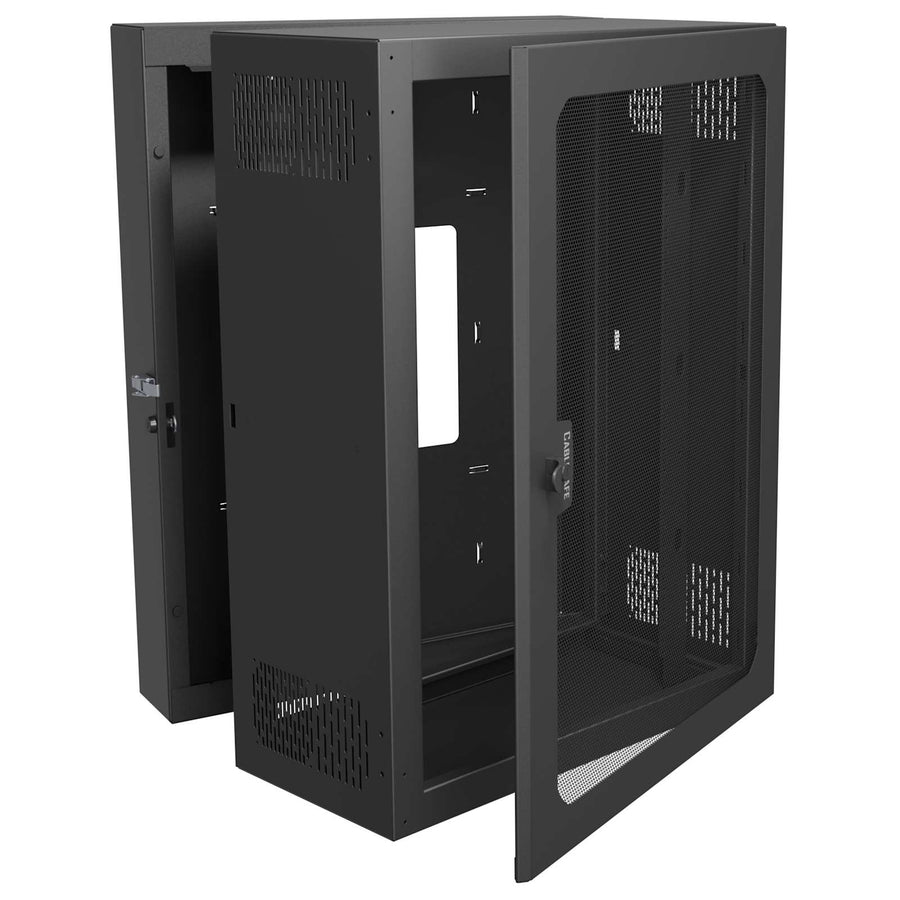

CWR Series Data Swing Wall Rack CWR-18-17VD
18 RU data swing wall rack for structured cabling with a 17 in (43.2 cm) depth and vented security door
The CWR-18-17VD is a 18 RU data swing wall rack specifically engineered for structured cabling environments where floor and wall space are at a premium. Built with heavy-duty welded steel construction, this rack supports a UL load capacity of 200 lbs (90.7 kg), making it a reliable choice for mounting multiple patch panels and various voice/data equipment. The 26 in (66 cm) overall width provides extra space for cable management and patching, while the 17 in (43.2 cm) depth offers a 15 in (38.1 cm) usable depth for standard hardware. This unit features a locking/latching plexiglass front door that can be easily reversed for either left or right-hand swing to suit your specific installation site. For thermal management, the vented door allows for passive cooling, though a CWR-FKIT 95 CFM fan kit is available for active cooling requirements. This TAA compliant rack utilizes 12-24 threaded rackrails and is ideal for installers needing both front and rear access via a locking swing-open center section.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 17 in (43.2 cm) |
| Height | 35.38 in (89.9 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 85 lbs (38.6 kg) |
| Rack Units | 18 RU |
| Shipping Weight | 110 lbs (49.9 kg) |
| UL Load Capacity | 200 lbs (90.7 kg) |
| Usable Depth | 15 in (38.1 cm) |
All other specifications 10
| Usable Height | 31.5 in (80 cm) |
| Width | 26 in (66 cm) |
| Available Internationally | Yes |
| Door Type | Vented Door |
| Material | Steel |
| Rack Rail Type | 12-24 |
| Rack Type | Wall |
| TAA Compliant | Yes |
| UPC | 656747112973 |
| Certifications | CSA StandardGREENGUARDTAAUL Listed |
Resources
You'll need these with it
18 RU Rackrail 12-24 for CWR Series
CWR-RR18$126.90
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
18 RU Rackrail 12-24 Offset Kit for CWR Series
CWR-OFRR18Discontinued
Filter Kit for CWR and VWM Series
FILTER-R-4-2K$154.56

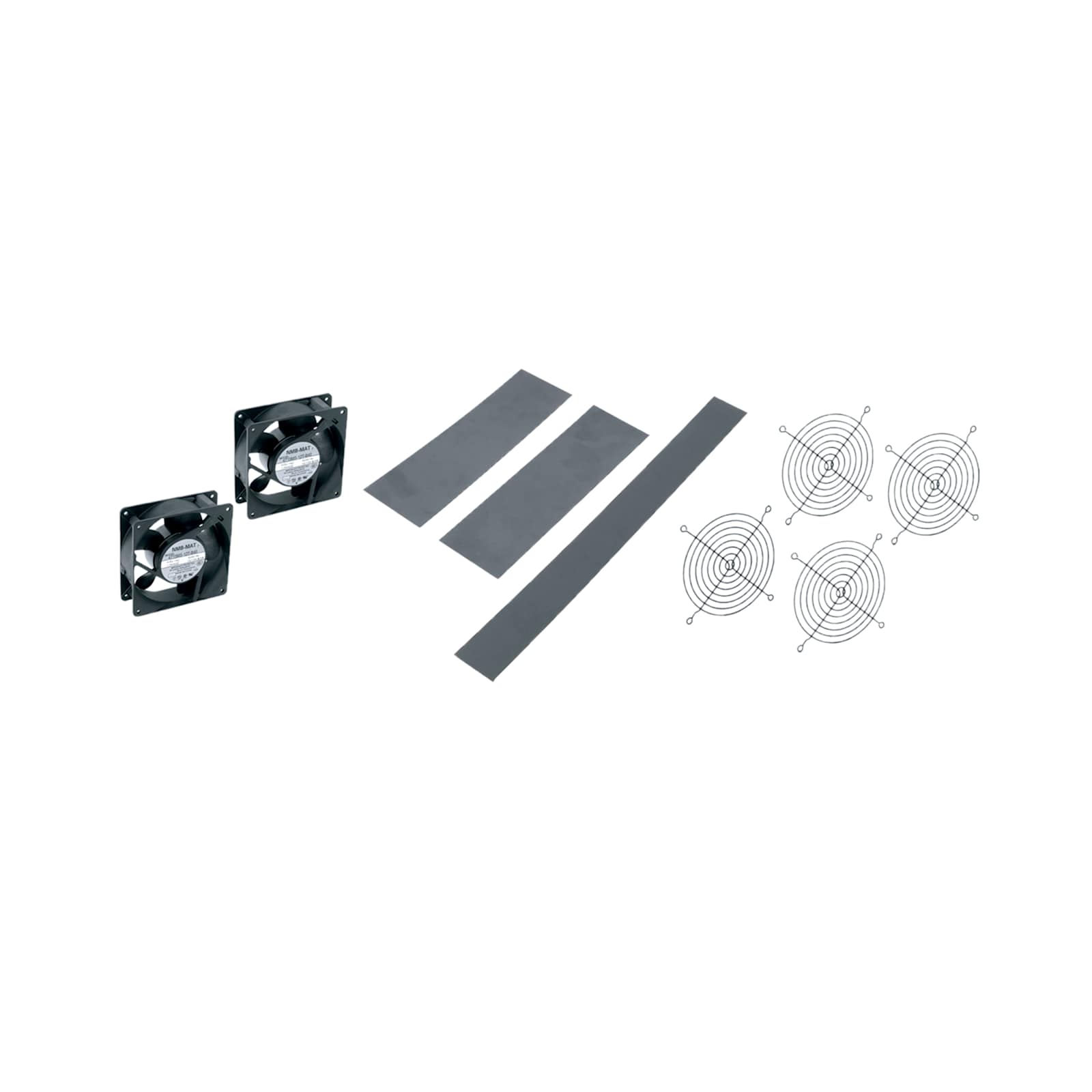

95 CFM Fan Kit for CWR Series Rack
CWR-FKIT$286.20
12-24 Rackscrew - 500 Piece
HP24-500$214.20
12-24 Rackscrew - 100 Piece
HP-24$46.80
PDT Low Profile Vertical Power Strip, 6 Outlet, 20A
PDT-620C-NS$264.60
PDT Low Profile Vertical Power Strip, 6 Outlet, 15A
PDT-615C-NS$232.20
PDT Low Profile Vertical Power Strip, 6 Outlet, 15A Basic Surge
PDT-615C$286.20

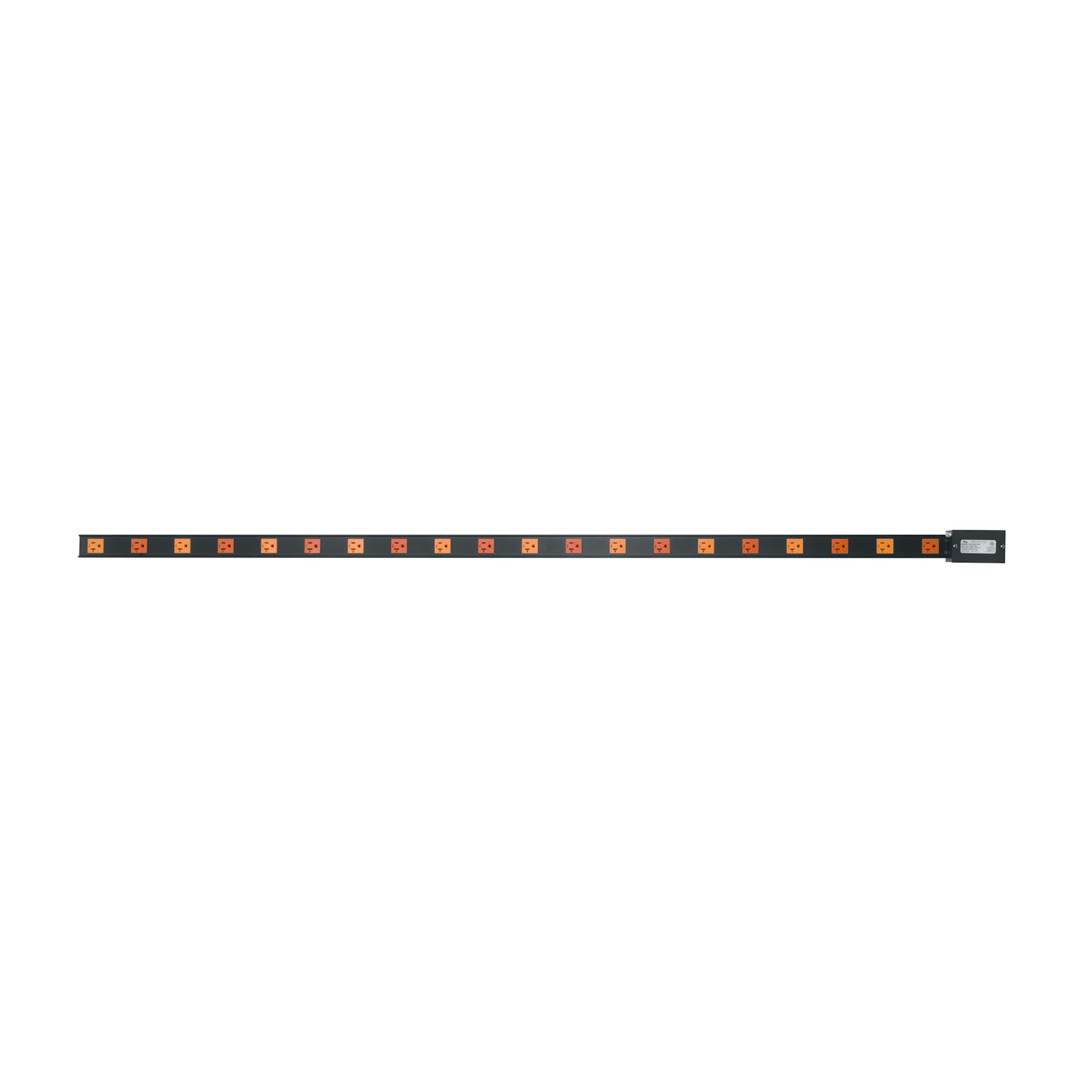

Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 12 Outlet, 15A Hardwired
PDT-2X615S$330.30
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 6 Outlet, 20A Hardwired
PDT-2X320$396.00
Questions about this part
How much weight can the CWR-18-17VD actually hold?
The rack has a UL load capacity of 200 lbs (90.7 kg) and is constructed from welded steel for strength.
Can I reverse the direction of the front door?
Yes, the plexiglass front door is designed to be easily reversed for either left or right-hand swing depending on your installation requirements.
What accessories are compatible with this 18 RU rack?
Compatible components include the CWR-FKIT fan kit, Select Series PDUs like the PDT-1620C-NS, and various LACE-13 strip cable management options.
What is the usable interior space of the rack?
The rack provides a usable height of 31.5 in (80 cm) and a usable depth of 15 in (38.1 cm).
Which document should I use for installation guidance?
The CWR Series Instruction Sheet (PDF) is the appropriate resource for installation and operation details.
