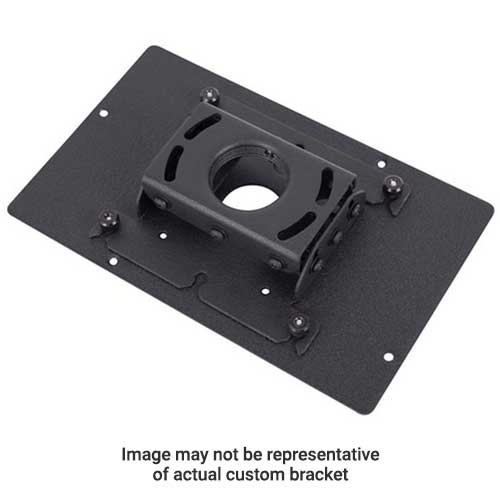

Custom RPA Projector Mount (Black)-RPA343
Custom black projector mount with independent roll, pitch, and yaw adjustability and quick-disconnect access
The Chief RPA343 is a custom-engineered projector mount designed for precision ceiling installations. This black-finish mount is built to provide rapid and accurate projector registration through independent roll, pitch, and yaw adjustability. For integrators performing maintenance, the quick-connect/disconnect feature allows for efficient lamp and filter access on most projectors. This mechanism is designed to maintain the projector's registration, meaning preset adjustments are not affected when the unit is disconnected. Security is addressed via All-Points Security exclusive steel-into-steel locking hardware at all key connection points to prevent theft. This model offers several installation configurations: it can be flush mounted directly to a ceiling, installed using 0.25" threaded rods, or mounted using a 1.5" NPT threaded extension column. The design also integrates cable management without the need for additional accessories, keeping the installation clean.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 13.25" x 13.25" x 3.5"(336.6 x 336.6 x 88.9 mm) |
| Shipping Weight | 6 lbs (2.7 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-Yaw |
| Application | Ceiling |
| Color | Black |
| Interface Type | Custom |
| Solution Type | Custom |
| TAA Compliant | Yes |
| UPC | 841872167190 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
CMS0911, 9-11' Adjustable Extension Column, Pole
CMS0911$256.80
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
Verified fitment
Questions about this part
Will the Chief RPA343 fit my projector?
This is a custom mount. It is verified against 61 models from 1 manufacturer, including Epson models EB-G6070W, EB-G6270W, EB-G6770WU, and EB-G6970WU.
Can I perform maintenance without losing my projector alignment?
Yes. The quick-connect/disconnect feature allows access to lamps and filters while maintaining registration so preset adjustments are not lost.
What are the installation options for this mount?
You can install this as a flush mount to a ceiling, use 0.25" threaded rods, or utilize a 1.5" NPT threaded extension column.
What accessories are needed for ceiling installation?
Depending on the site, you may require accessories such as the CMS443 extension column and ceiling mount kit or the CMA165 internal joist ceiling kit.
Is this projector mount TAA compliant?
Yes, the RPA343 is TAA compliant and is UL Listed.
