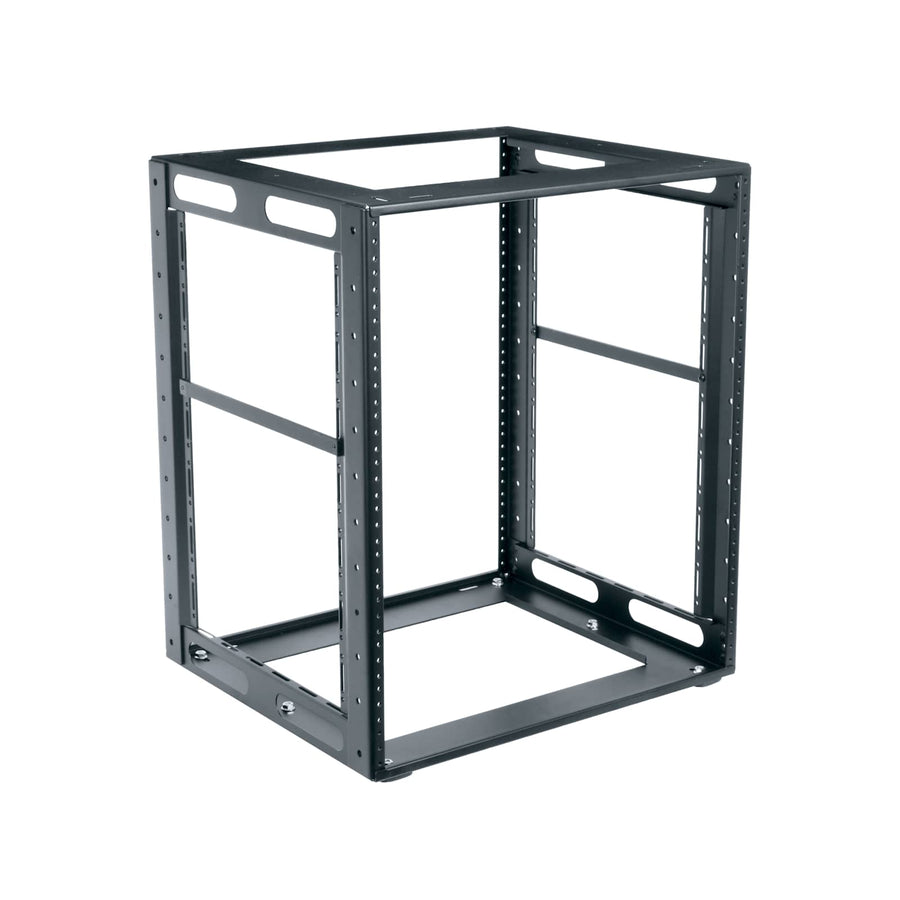

CFR Cabinet Frame Rack CFR-16-18
16 RU cabinet frame rack with 18" usable depth and 250 lbs UL load capacity
The Middle Atlantic CFR-16-18 is a 16 RU cabinet frame rack designed to maximize usable rackspace within entertainment systems, specialized cabinets, and other confined installation environments. Built with a strong, welded steel frame, this low-profile rack allows installers to pre-load heavy equipment before transporting the assembly to the final job site. This unit features an 18 in (45.7 cm) depth and an overall height of 28.94 in (73.5 cm). For organized cable management, the frame includes two front-to-rear lacing bars, and the uprights are designed with offset cable tie areas to assist with dressing. This rack is TAA compliant and UL listed. Its 10-32 rack rail type and 19.25 in (48.9 cm) width make it a reliable foundation for professional AV system integration in space-constrained locations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 18 in (45.7 cm) |
| Height | 28.94 in (73.5 cm) |
| Product Weight | 23.5 lbs (10.7 kg) |
| Rack Units | 16 RU |
| Shipping Weight | 29 lbs (13.2 kg) |
| UL Load Capacity | 250 lbs (113.4 kg) |
| Usable Depth | 18 in (45.7 cm) |
| Usable Height | 28 in (71.1 cm) |
All other specifications 10
| Width | 19.25 in (48.9 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Flat Powder Coat |
| Material | Steel |
| Rack Rail Type | 10-32 |
| Rack Type | In-Cabinet |
| TAA Compliant | Yes |
| UPC | 656747127434 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A, Basic Surge Protection - 10 ft Cord
PD-815SC$210.60
18 Inch Deep Runner Kit for RS Series Racks
5-RS18$61.20
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Lace Bar 2 Inch Offset, L-Shaped - 10 Pieces
LBP-2A$105.30
Multi-Mount PDU, 18 Outlet, 20A & 2-Stage Surge
PD-1820R-RN$432.00
50 CFM Fan Panel, 24dB
UQFP-2$558.90
Rackmount Power/Lighting, 8 Outlet, 15A & & 2-Stage Surge
PDLT-815RV-RN$604.80
1 RU Adjustable Rackshelf 16 Inches to 26 Inches Deep
VSA-1626$211.50
1 RU Plastic Cable Manager, 4 Inches Deep
PHCM-1-4$54.90
1 RU Plastic Cable Manager, 2 Inches Deep
PHCM-1-2$51.30
2 RU Plastic Cable Manager, 3 Inches Deep
PHCM-2-3$61.20
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A, Basic Surge Protection - 20 ft Cord
PD-815SC-20$232.20
Questions about this part
Will this rack fit in a standard entertainment cabinet?
With a usable depth of 18 in (45.7 cm) and an overall width of 19.25 in (48.9 cm), this rack is specifically designed for low-profile integration into existing cabinet spaces.
What is the weight capacity for the CFR-16-18?
This frame rack has a UL load capacity of 250 lbs (113.4 kg).
What accessories are compatible with this frame?
You can add components such as the VSA-1626 adjustable rackshelf, PD-815SC vertical power strips, or UQFP-2 fan panels to customize your setup.
Does this rack include cable management features?
Yes, it includes two front-to-rear lacing bars and features uprights with offset cable tie areas for cable organization.
Is this rack TAA compliant for government contracts?
Yes, the CFR-16-18 is TAA compliant and is UL listed.
