Rackmount Power/Lighting, 8 Outlet, 15A & & 2-Stage Surge
1U rackmount power distribution with 8 outlets, 2-stage surge protection, and integrated retractable front lighting

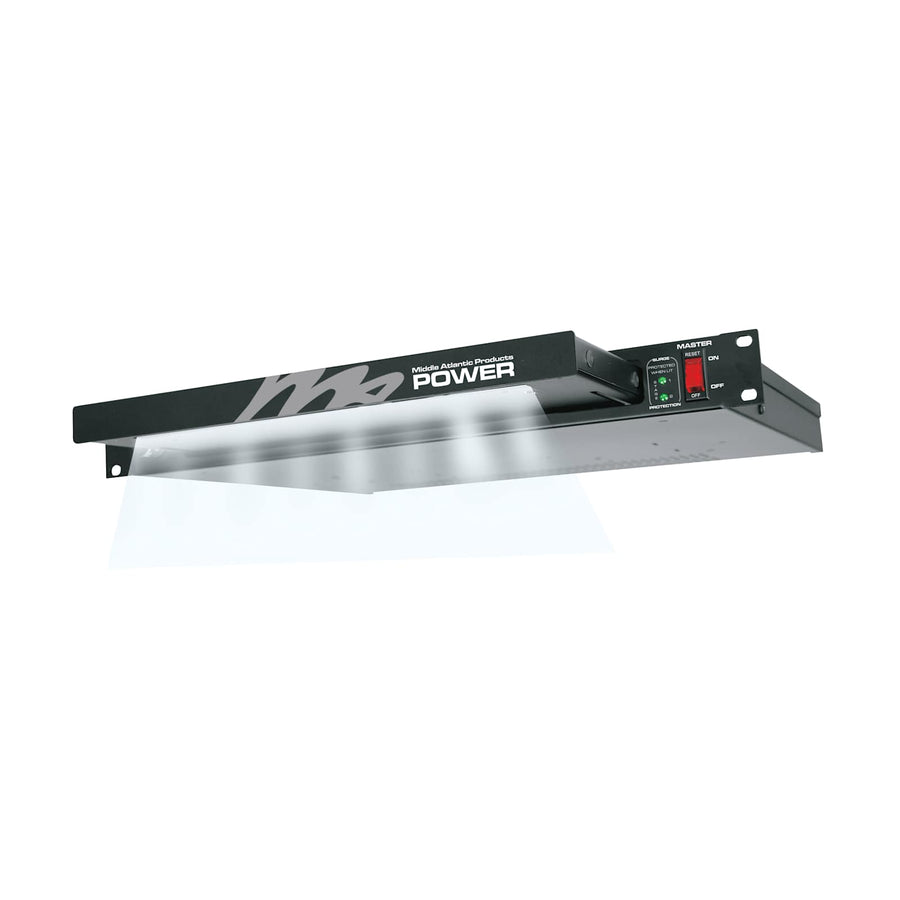

The Middle Atlantic PDLT-815RV-RN integrates power distribution and rack lighting into a single 1U space. This steel unit features 8 outlets providing 15A of power via a 9 ft (2.7 m) cord with a 5-15P plug. To assist with equipment identification and maintenance in dark racks, it includes retractable front lights that illuminate your rack components. For lighting expansion, two rear USB power ports are included to provide power to LT-GN series work lights. The device provides 2-stage surge protection with a notification feature, engineered to ensure noise is not passed to the ground. This ETL Listed component is 19 in (48.3 cm) wide, 1.75 in (4.4 cm) high, and 10.06 in (25.6 cm) deep, making it a compact solution for high-density professional installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 15 Amp |
| Cord Length | 9 ft (2.7 m) |
| Depth | 10.06 in (25.6 cm) |
| Height | 1.75 in (4.4 cm) |
| Rack Units | 1 RU |
| Shipping Weight | 12.1 lbs (5.5 kg) |
| Volts AC | 115 VAC |
| Width | 19 in (48.3 cm) |
All other specifications 11
| Cable Type | Corded |
| Finish | Black Powder Coat |
| Material | Steel |
| Mounting Points | 2 |
| Number of Circuits | 1 |
| Outlet Count | 8 |
| Plug Type | 5-15P |
| Surge Protection Type | 2-Stage |
| TAA Compliant | No |
| UPC | 656747073083 |
| Certifications | ETL Listed |
Resources
Questions about this part
What is the purpose of the front lights on the PDLT-815RV-RN?
The PDLT-815RV-RN features retractable front lights specifically designed to illuminate your rack components for easier servicing and identification.
Can I add additional lighting to this power strip?
Yes, this unit includes two rear USB power ports that allow you to power LT-GN series work lights within your rack.
Does the PDLT-815RV-RN include surge protection?
The unit provides 2-stage surge protection and includes a notification feature, while being designed not to pass noise to ground.
What are the mounting and power specifications for the PDLT-815RV-RN?
This is a 1U rackmount unit with 2 mounting points, a 9 ft (2.7 m) cord length, and a 5-15P plug type.
What is the difference between this and the PDLT series variants?
This specific SKU is a Black Powder Coat finish variant; other versions in the PDLT series are available in a Brushed and Anodized finish.
