CFR Cabinet Frame Rack CFR-14-18
14 RU in-cabinet frame rack with 18 inch depth, 250 lbs UL load capacity, and TAA compliance

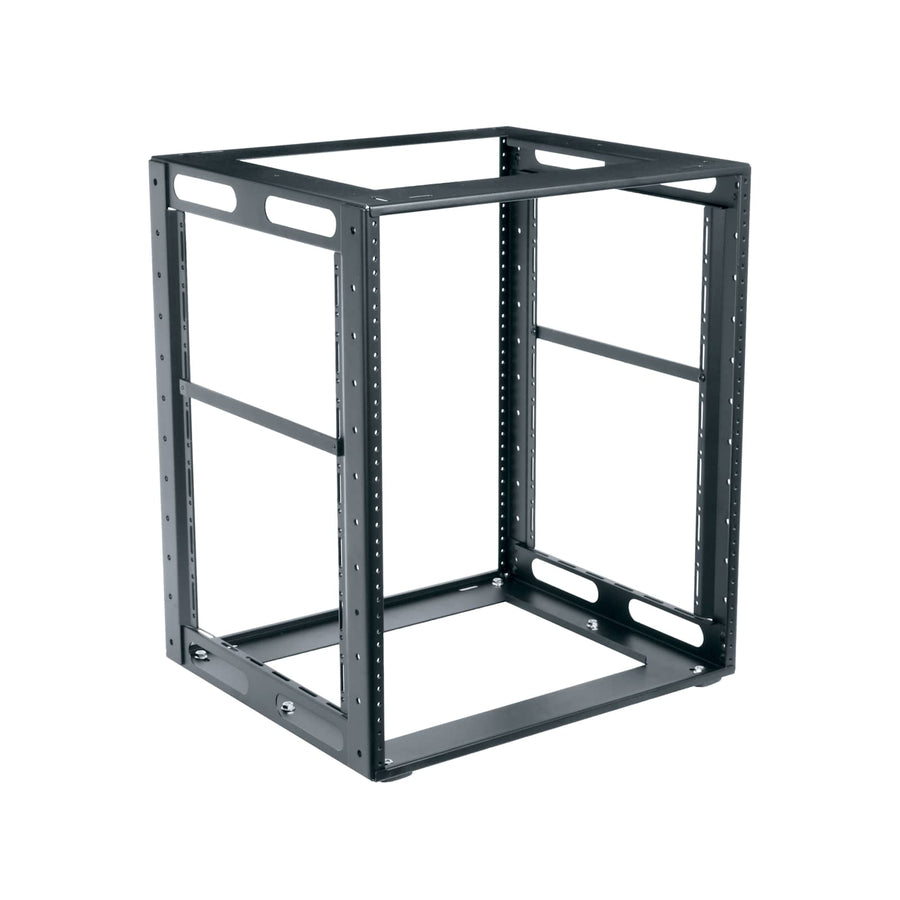

The Middle Atlantic CFR-14-18 is a 14 RU in-cabinet frame rack designed to maximize usable rackspace within entertainment systems and specialized cabinets. Built with a strong, welded steel frame, this low-profile rack allows installers to pre-load heavy equipment to the job site, simplifying the final installation process. This specific model features an 18 in (45.7 cm) usable depth and a total height of 25.43 in (64.6 cm). For efficient cable management, the frame includes two front-to-rear lacing bars and uprights that feature offset cable tie areas. The rack is finished in a black flat powder coat and uses 10-32 rack rails. With a UL load capacity of 250 lbs (113.4 kg), it provides a stable foundation for professional AV equipment in space-constrained environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 18 in (45.7 cm) |
| Height | 25.43 in (64.6 cm) |
| Product Weight | 21.6 lbs (9.8 kg) |
| Rack Units | 14 RU |
| Shipping Weight | 27.1 lbs (12.3 kg) |
| UL Load Capacity | 250 lbs (113.4 kg) |
| Usable Depth | 18 in (45.7 cm) |
| Usable Height | 24.5 in (62.2 cm) |
All other specifications 10
| Width | 19.25 in (48.9 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Flat Powder Coat |
| Material | Steel |
| Rack Rail Type | 10-32 |
| Rack Type | In-Cabinet |
| TAA Compliant | Yes |
| UPC | 656747112737 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
1 RU Mounting Rackshelf
UTR1$58.50
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A
PD-815SC-NS$188.10
Lace Bar L-Shaped - 10 Pieces
LBP-1A$63.00
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A, Basic Surge Protection - 10 ft Cord
PD-815SC$210.60
18 Inch Deep Runner Kit for RS Series Racks
5-RS18$61.20
100 CFM Fan Panel, 27dB
UQFP-4$630.90
2 RU Select Series UPS Backup Power, 1500VA
UPS-S1500R$1,598.40
100 CFM Fan Panel, Anodized
QFP-2$252.90
1 RU Adjustable Rackshelf 16 Inches to 26 Inches Deep
VSA-1626$211.50
2 RU Utility Rackshelf, 15.4 Inches Deep, Vented - 4 Piece
U2V-4$358.20
1 RU Plastic Cable Manager, 4 Inches Deep
PHCM-1-4$54.90
Questions about this part
Will this rack fit inside my existing cabinet?
The CFR-14-18 is an in-cabinet rack with a width of 19.25 in (48.9 cm) and a total height of 25.43 in (64.6 cm).
What equipment can I mount in this 14 RU rack?
It supports equipment up to a 250 lbs (113.4 kg) UL load capacity and features 10-32 rack rails.
Does this rack include cable management accessories?
The frame comes with two front-to-rear lacing bars and uprights with offset cable tie areas for dressing cables.
What other items are compatible with the CFR-14-18?
You can add accessories like the VSA-1626 1 RU adjustable rackshelf or the PD-815SC vertical power strip.
Is this rack TAA compliant for government contracts?
Yes, this rack is TAA compliant and was manufactured in the USA.
