CFR Cabinet Frame Rack CFR-12-23
12 RU in-cabinet frame rack, 23-inch depth, with 250 lbs UL load capacity
The Middle Atlantic CFR-12-23 is a 12 RU cabinet frame rack designed to maximize usable rackspace within entertainment systems, cabinets, and other confined spaces. This low-profile, in-cabinet solution features a strong, welded steel frame construction that allows installers to pre-load equipment to simplify transportation to the installation site. With a usable height of 21 in (53.3 cm) and a usable depth of 23 in (58.4 cm), it is optimized for high-density integration. The rack's 19.25 in (48.9 cm) width is built to standard specifications, and the 10-32 rack rail type ensures secure equipment mounting. For efficient cable management, this frame includes two front-to-rear lacing bars and uprights that feature offset cable tie areas. This TAA compliant, UL listed steel frame provides a professional, organized foundation for mission-critical AV equipment in tight environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 23 in (58.4 cm) |
| Height | 21.94 in (55.7 cm) |
| Product Weight | 19.3 lbs (8.8 kg) |
| Rack Units | 12 RU |
| Shipping Weight | 24.8 lbs (11.3 kg) |
| UL Load Capacity | 250 lbs (113.4 kg) |
| Usable Depth | 23 in (58.4 cm) |
| Usable Height | 21 in (53.3 cm) |
All other specifications 10
| Width | 19.25 in (48.9 cm) |
| Color | Black |
| Federal Ops Country of Origin | Mexico |
| Finish | Flat Powder Coat |
| Material | Steel |
| Rack Rail Type | 10-32 |
| Rack Type | In-Cabinet |
| TAA Compliant | Yes |
| UPC | 656747268397 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A, Basic Surge Protection - 10 ft Cord
PD-815SC$210.60
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
1 RU Fan Tray, 6 Fans, 414 CFM
FTA-6$701.10

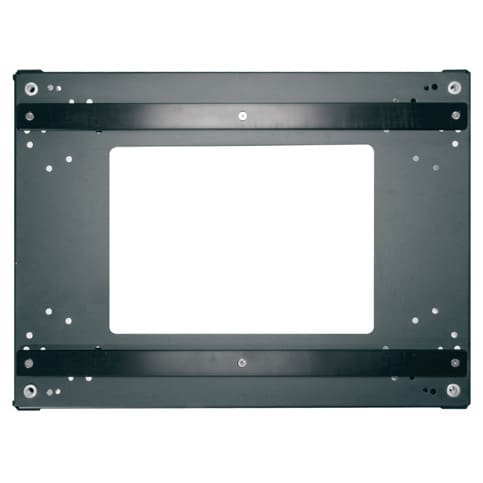

23 Inch Deep Runner Kit for RS Series Racks
5-RS23$66.60
20 CFM Quiet-Cool Cabinet Cooler
CAB-COOL$189.00
3 RU Rack Vent Panel, Perforated with 64% Open Area - 6 Piece Contractor Pack
VT3-CP6$211.50
1 RU Adjustable Rackshelf 16 Inches to 26 Inches Deep
VSA-1626$211.50
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A, Basic Surge Protection - 20 ft Cord
PD-815SC-20$232.20
1 RU Plastic Cable Manager, 2 Inches Deep
PHCM-1-2$51.30
2 RU Plastic Cable Manager, 3 Inches Deep
PHCM-2-3$61.20
1 RU Plastic Cable Manager, 4 Inches Deep
PHCM-1-4$54.90
1 RU Hinged Horizontal Cable Manager
HHCM-1$84.60
Questions about this part
Will this rack fit inside my existing AV cabinet?
Yes, the CFR-12-23 is an in-cabinet type rack with a 23 in (58.4 cm) depth and a 21.94 in (55.7 cm) height, designed to maximize space in entertainment systems and similar enclosures.
What is the maximum weight capacity for this frame?
The CFR-12-23 is UL listed with a load capacity of 250 lbs (113.4 kg).
What accessories are compatible with the CFR-12-23?
You can integrate several accessories including PD Slim High Density Vertical Power Strips like the PD-815SC, 1 RU Fan Trays like the FTA-6, or adjustable rackshelves such as the VSA-1626.
Does this rack support organized cable management?
Yes, the frame comes equipped with two front-to-rear lacing bars for cable dressing and uprights that feature offset cable tie areas for easier routing.
Is this product TAA compliant for government contracts?
Yes, the Middle Atlantic CFR-12-23 is TAA compliant and is manufactured in Mexico.
