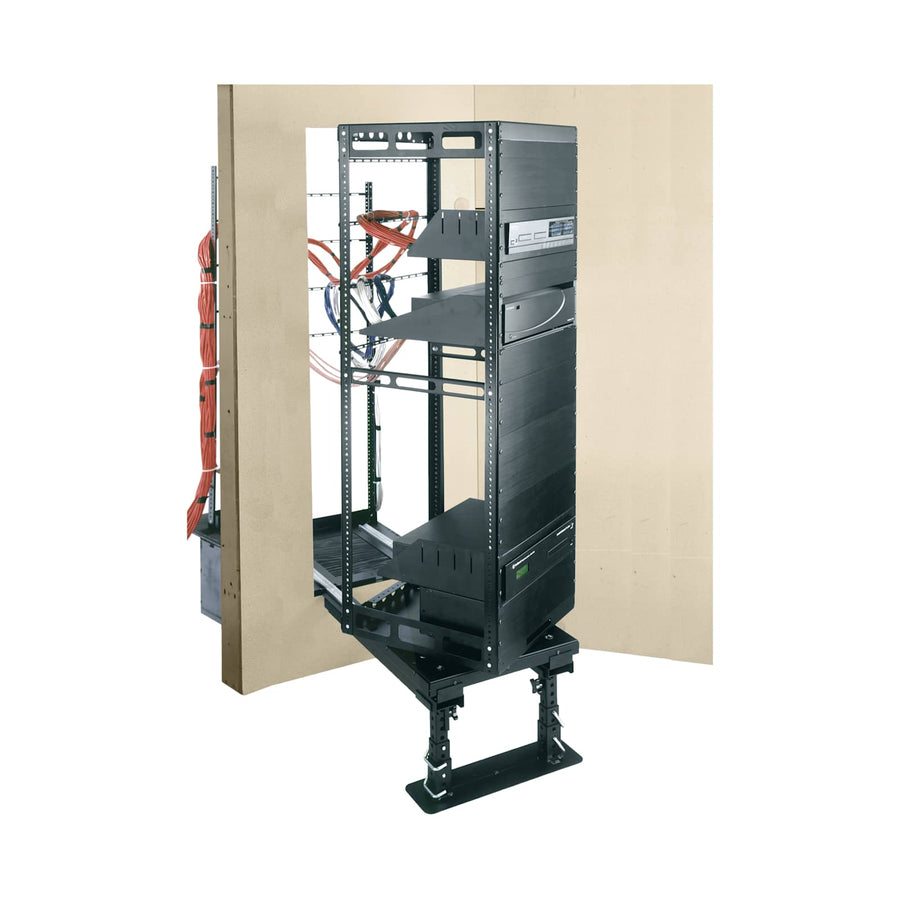

AXS Series Rack AX-SXR-42
42 RU rotating in-wall slide-out rack with 450 lbs capacity and integrated cable management
The AX-SXR-42 is a 42 RU in-wall slide-out rotating rack designed for flush-mounted audio and video installations. Unlike the standard AXS series, the AX-SXR series features a unique rotating capability that allows the rack to turn once pulled out. This makes it an ideal solution for providing technician access to equipment in cramped or narrow spaces. Built with a unique interlocking corner joint, this frame provides exceptional strength and can be integrated off-site to reduce installation time on the job site. The unit includes a built-in cable management system and features standard fixed front and rear 10-32 threaded rackrails with numbered spaces. For optimal serviceability, the service tracks include a built-in level to assist with installation accuracy. This TAA compliant rack supports a weight capacity of 450 lbs (204.1 kg). Note that service tracks and stands are sold separately.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 20 in (50.8 cm) |
| Height | 78.19 in (198.6 cm) |
| Rack Units | 42 RU |
| Usable Depth | 20 in (50.8 cm) |
| Usable Height | 73.5 in (186.7 cm) |
| Weight Capacity | 450 lbs (204.1 kg) |
| Width | 19.25 in (48.9 cm) |
| Federal Ops Country of Origin | USA |
| Rack Rail Type | 10-32 |
| TAA Compliant | YesYes |
| UPC | 656747056314 |
| Certifications | TAA |
Resources
You'll need these with it
PD Slim High Density Vertical Power Strip, 24 Outlet, 20A
PD-2420SC-NS$330.30
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
4 1/2 Inch DC Fan Kit, 138 CFM with Thermo Controller
FAN2-DC-FC$350.10
FTA Series 4 Inch DC Fan
FT-FAN$90.00
1 RU Fan Tray, 6 Fans, 414 CFM
FTA-6$701.10
1 RU Adjustable Rackshelf 16 Inches to 26 Inches Deep
VSA-1626$211.50

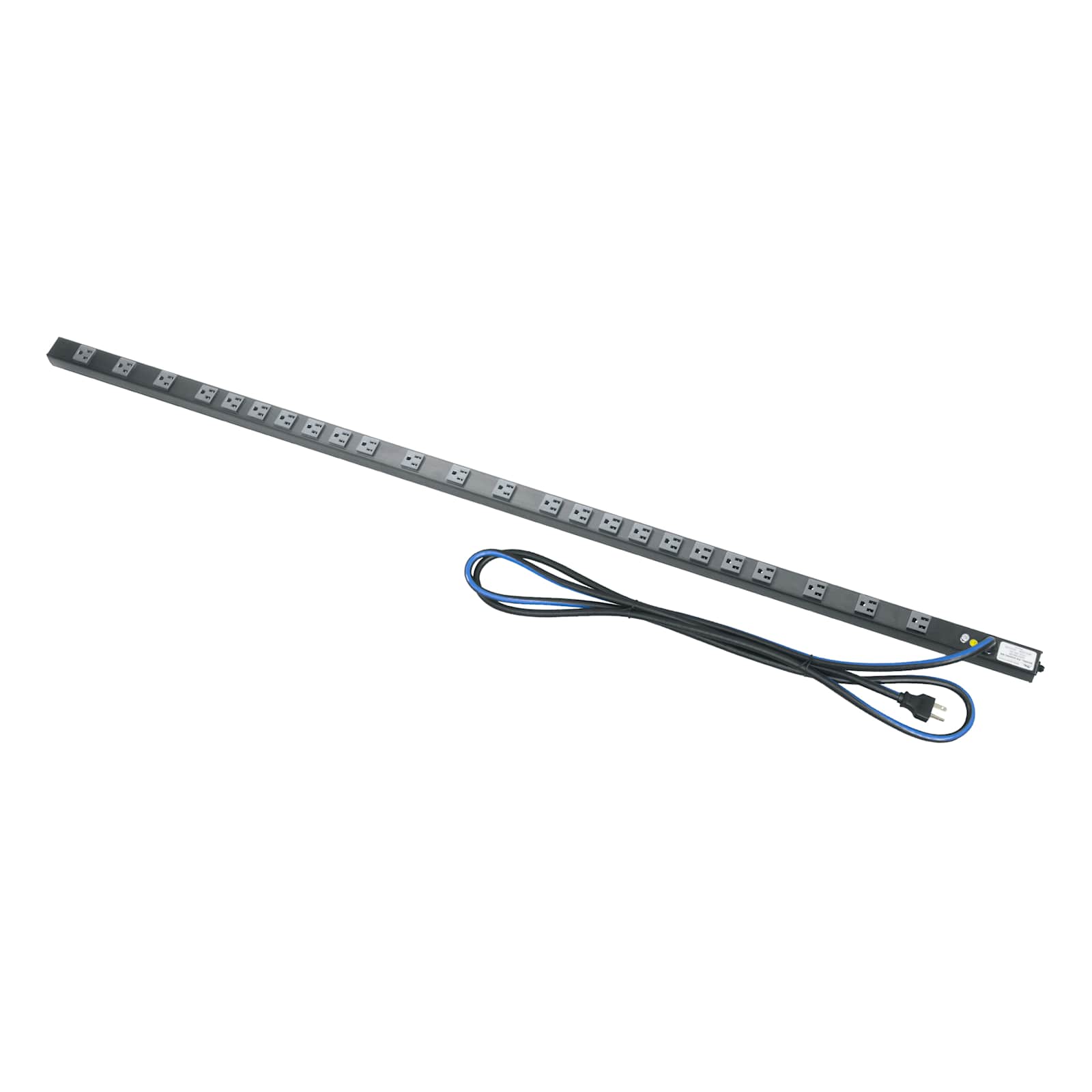

PD Slim High Density Vertical Power Strip, 24 Outlet, 15A, Basic Surge Protection
PD-2415SC$330.30
1 RU Sliding Rackshelf
SS$254.70
100 CFM Fan Panel with Display, 27dB
UQFP-4D$1,026.90

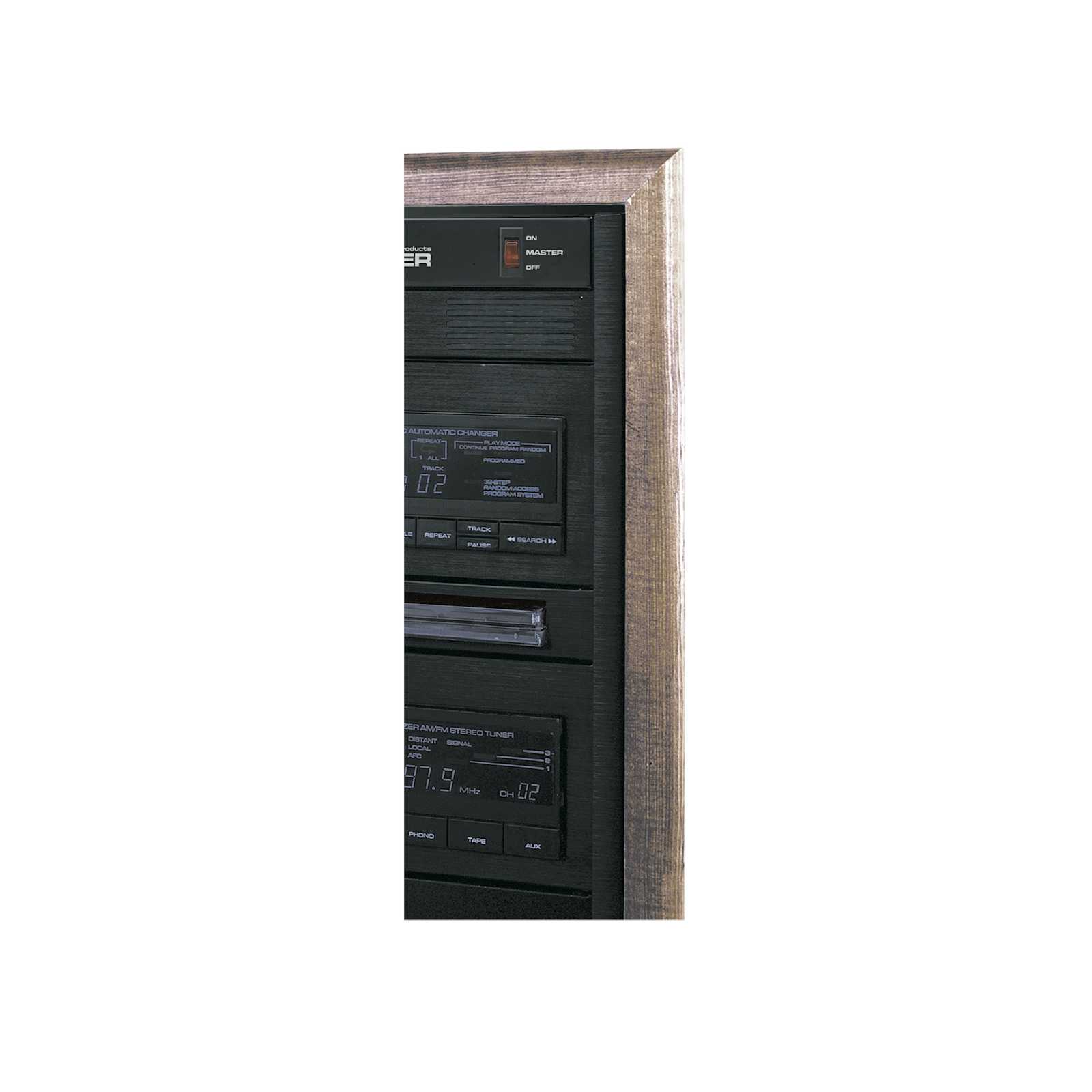

Anodized Trim Kit
TA$99.00
Powder Coated Trim Kit
TS$40.50
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
Questions about this part
How does the AX-SXR-42 differ from the standard AXS series?
The AX-SXR-42 includes a rotating function when pulled out, providing access to equipment in cramped areas where a non-rotating rack would be restricted.
What is required for a complete installation?
The frame uses standard 10-32 threaded rackrails, but you must purchase service tracks and stands separately to complete the assembly.
Is the AX-SXR-42 TAA compliant?
Yes, this product is TAA compliant and is manufactured in the USA.
What are the dimensions for the AX-SXR-42?
The rack has a physical height of 78.19 in (198.6 cm), a width of 19.25 in (48.9 cm), and a depth of 20 in (50.8 cm).
What accessories are compatible with this rack?
Compatible components include VSA-1626 adjustable rackshelves, various PD Slim and PDT power strips, and FAN2-DC-FC fan kits.
