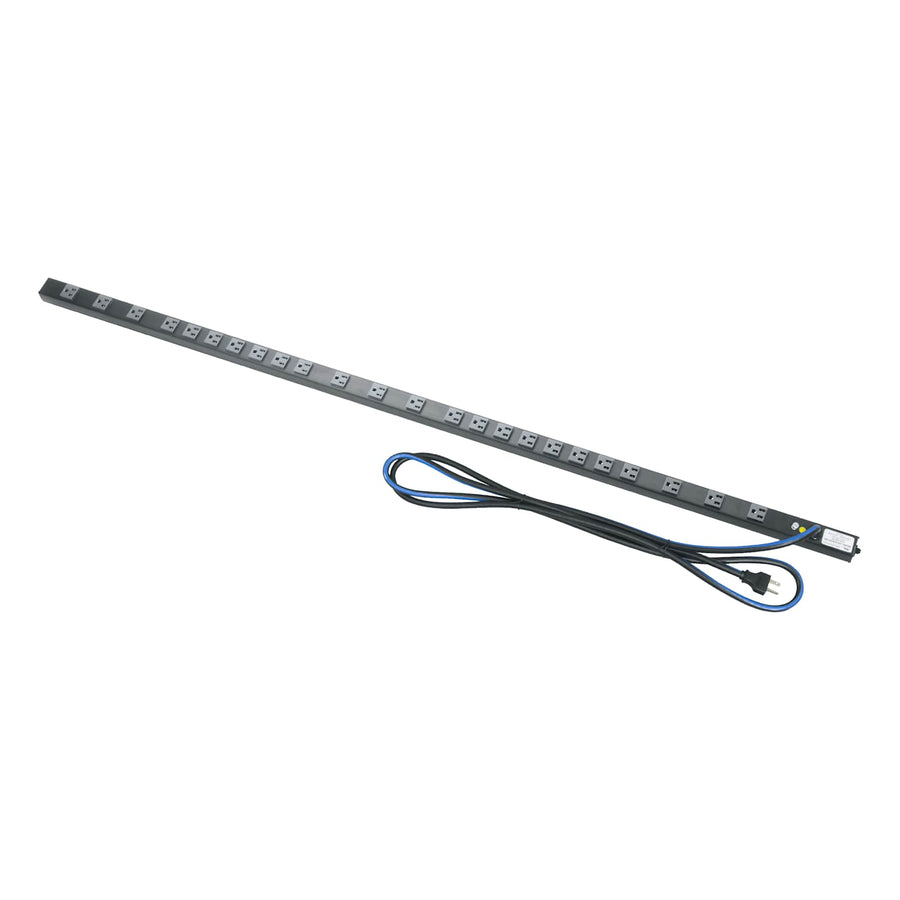

PD Slim High Density Vertical Power Strip, 24 Outlet, 15A, Basic Surge Protection
High-density vertical power strip with 24 outlets, 15A capacity, and a 10 ft SignalSAFE power cord
The PD-2415SC is a high-density vertical power strip from the Middle Atlantic Select Series, designed to provide power to equipment-heavy racks where space is at a premium. This 24-outlet PDU is engineered for vertical mounting in the rear of a rack, allowing for an unobtrusive footprint that maximizes available rack units for other components. Each unit features a slim profile with a 1.71" width and 1.64" depth, making it easy to integrate into tight spaces without obstructing airflow or access. This model includes a 10 ft (3.1 m) SignalSAFE power cord, which is designed to minimize potential electromagnetic interference from AC magnetic fields generated by other equipment in the rack. The strip operates on 120 VAC at 15 Amps and features basic surge protection to safeguard sensitive AV components. Installation is streamlined via a snap-on mounting system that attaches the strip to the side of the rack using included hardware.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 15 Amp |
| Cord Length | 10 ft (3.1 m) |
| Depth | 1.64 in (4.2 cm) |
| Height | 60.6 in (153.9 cm) |
| Shipping Weight | 5.1 lbs (2.3 kg) |
| Volts AC | 120 VAC |
| Width | 1.71 in (4.3 cm) |
| Cable Type | Corded |
All other specifications 8
| Finish | Black Anodized |
| Number of Circuits | 1 |
| Outlet Count | 24 |
| Plug Type | 5-15P |
| Surge Protection Type | Basic |
| TAA Compliant | No |
| UPC | 656747047640 |
| Certifications | ETL Listed |
Resources
Questions about this part
How do I install the PD-2415SC in my rack?
Installation is handled via a snap-on system; the mounting hardware is included to allow you to quickly clip the PDU onto the side of the rack.
Does this power strip include surge protection?
Yes, the PD-2415SC provides basic surge protection and is ETL Listed for use in your installation.
What is the length of the power cord on this model?
This specific SKU comes equipped with a 10 ft (3.1 m) SignalSAFE power cord designed to reduce interference.
How many outlets are available on the PD-2415SC?
This high-density model provides 24 outlets to support a large number of devices in a single vertical strip.
What documentation is available for submittals?
You can access the PD Series Slim Power Strips A&E Specification Sheet, the 3-part specification, and CAD technical drawings through the resources tab.
