AXS Series Rack AX-SXR-34
34 RU in-wall slide-out rotating rack for flush-mounted equipment, 450 lbs capacity

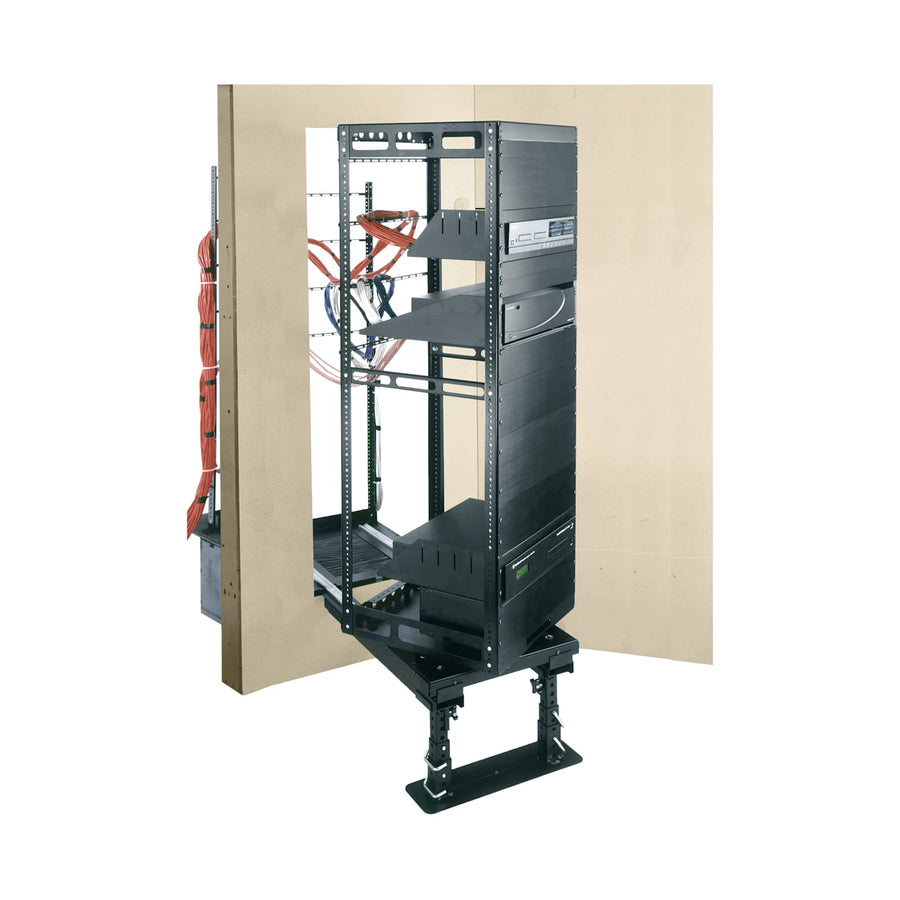

The AX-SXR-34 is a 34 RU in-wall slide-out rotating rack designed for mounting audio and video equipment flush into a wall or cabinet. While similar to the standard AXS Series, this AX-SXR model provides an integrated rotation feature once pulled out, allowing installers to access equipment in cramped or difficult-to-reach areas. This makes it an ideal solution for larger systems where serviceability is critical. The rack features a 20 in (50.8 cm) usable depth and a 19.25 in (48.9 cm) width. Construction includes a unique interlocking corner joint for exceptional strength and easy assembly. For efficient installation, the service tracks feature a built-in level, and the removable rack frame can be integrated off-site. The unit utilizes standard fixed front and rear 10-32 threaded rackrails with numbered spaces for organized component mounting. This TAA compliant rack has a total weight capacity of 450 lbs (204.1 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 20 in (50.8 cm) |
| Height | 64.19 in (163 cm) |
| Rack Units | 34 RU |
| Usable Depth | 20 in (50.8 cm) |
| Usable Height | 59.5 in (151.1 cm) |
| Weight Capacity | 450 lbs (204.1 kg) |
| Width | 19.25 in (48.9 cm) |
| Federal Ops Country of Origin | USA |
| Rack Rail Type | 10-32 |
| TAA Compliant | YesYes |
| UPC | 656747056239 |
| Certifications | TAA |
Resources
You'll need these with it
2 RU Select Series UPS Backup Power, 2200VA
UPS-S2200R$1,935.00
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
2 RU Utility Rackshelf, 15.4 Inches Deep, Vented
U2V$96.30
1 RU Sliding Rackshelf
SS$254.70
8 RU Fixed Security Cover With Hinged Plexi Door
SECL-8$171.00
101mm DC Fan Kit with (1) Fan, 69CFM for the European Union
FAN-69-K-EU$130.50
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
PDT Low Profile Vertical Power Strip, 10 Outlet, 15A
PDT-1015C-NS$253.80
PDT Low Profile Vertical Power Strip, 10 Outlet, 20A
PDT-1020C-NS$297.90
PDT Low Profile Vertical Power Strip, 10 Outlet, 15A & 2-Stage Surge
PDT-1015C-RN$297.90
PDT Low Profile Vertical Power Strip, 10 Outlet, 15A with Local Meter
PDT-1015C-M-NS$385.20
Questions about this part
How does the AX-SXR-34 differ from the standard AXS Series?
The AX-SXR series includes a rotation feature that allows the rack to turn once it is pulled out from the wall, providing much better access to equipment in tight spaces compared to the non-rotating AXS models.
What do I need to purchase to complete the installation?
Service tracks and stands are sold separately from the AX-SXR-34 rack frame. You will also need to source your own mounting hardware for the specific wall or cabinet being used.
What is the weight capacity of this 34 RU rack?
The AX-SXR-34 is rated for a weight capacity of 450 lbs (204.1 kg), making it suitable for heavy audio and video components.
What type of rack rails are used in the AX-SXR-34?
The rack is equipped with standard fixed front and rear 10-32 threaded rackrails that feature numbered spaces for easy component positioning.
Is the AX-SXR-34 TAA compliant?
Yes, this product is TAA compliant and is manufactured in the USA.
