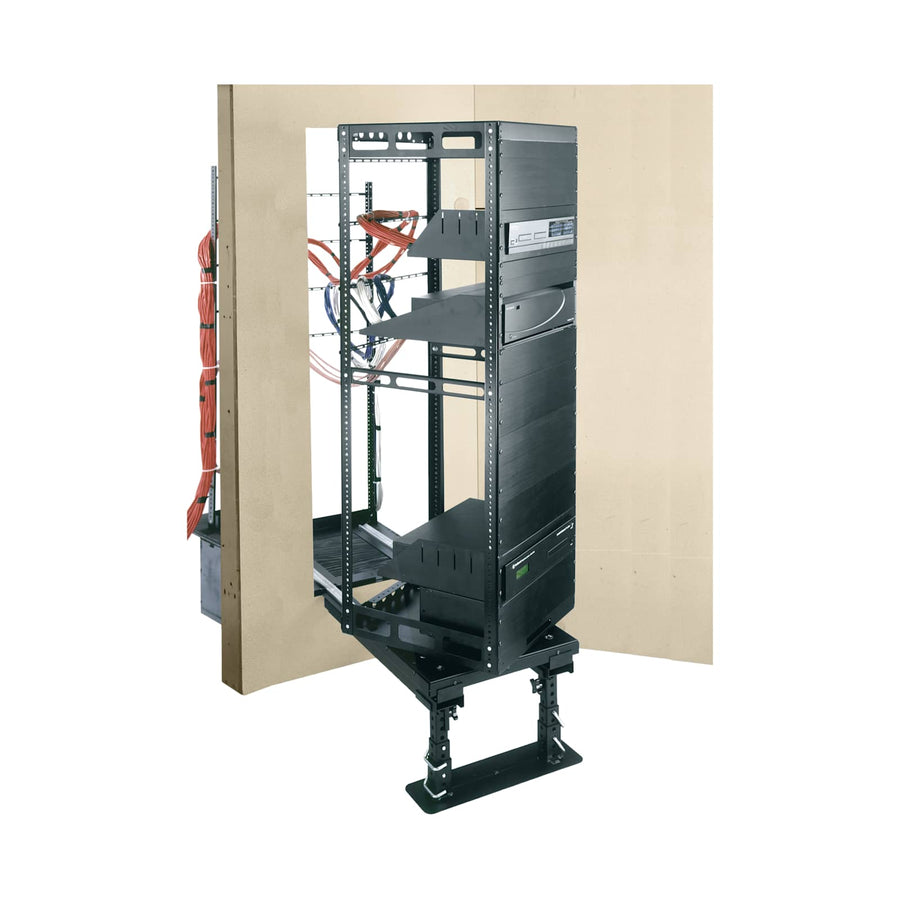

AXS Series Rack AX-SXR-32
32 RU rotating in-wall slide out rack with 450 lbs capacity for high-access equipment installation
The AX-SXR-32 is a 32 RU in-wall slide out rotating rack designed to facilitate easier maintenance and access to equipment in confined spaces. Unlike the standard AXS Series, this model includes a rotating capability once pulled from its installation, allowing installers to service audio and video gear more effectively in cramped environments. The frame is built with a unique interlocking corner joint for enhanced structural strength and assembly efficiency. It features standard fixed front and rear 10-32 threaded rackrails with numbered spaces. To improve installation speed, the service tracks include a built-in level, and the removable rack frame can be integrated off-site. This rack is TAA compliant and manufactured in the USA.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 20 in (50.8 cm) |
| Height | 60.69 in (154.2 cm) |
| Rack Units | 32 RU |
| Usable Depth | 20 in (50.8 cm) |
| Usable Height | 56 in (142.2 cm) |
| Weight Capacity | 450 lbs (204.1 kg) |
| Width | 19.25 in (48.9 cm) |
| Federal Ops Country of Origin | USA |
| Rack Rail Type | 10-32 |
| TAA Compliant | YesYes |
| UPC | 656747056215 |
| Certifications | TAA |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
PDT Low Profile Vertical Power Strip, 10 Outlet, 15A
PDT-1015C-NS$253.80
PDT Low Profile Vertical Power Strip, 10 Outlet, 20A
PDT-1020C-NS$297.90
PDT Low Profile Vertical Power Strip, 10 Outlet, 15A & 2-Stage Surge
PDT-1015C-RN$297.90
PDT Low Profile Vertical Power Strip, 10 Outlet, 15A with Local Meter
PDT-1015C-M-NS$385.20
23 RU Lace Strip 4.75 Inches Wide with Tie Posts - 6 Piece
LACE-23-OWP$282.60
23 RU Lace Strip 3.25 Inches Wide with Tie Posts - 6 Piece
LACE-23-OP$250.20
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Raceway, 56 Inches, Accepts 6 Modules
MPR-6A$158.40
4 RU Flanged Blank Rack Panel, Wrinkled
WSB4$41.40
Questions about this part
How much weight can the AX-SXR-32 support?
The AX-SXR-32 has a weight capacity of 450 lbs (204.1 kg).
What is the difference between the AX-SXR and the AXS series?
While similar to the AXS Series, the AX-SXR series features a rotating mechanism that allows the rack to turn once it is pulled out of the wall.
Is the AX-SXR-32 TAA compliant?
Yes, the AX-SXR-32 is TAA compliant and is manufactured in the USA.
What do I need to buy to complete the installation?
Service tracks and stands are sold separately for this series. You may also require accessories like the LACE-23-OWP Lace Strips for cable management.
Which document should I use for a submittal?
For technical submittals, you can refer to the AX-SXR Series CAD Technical Specification Drawings or the AX-SXR System Specification Sheet.
