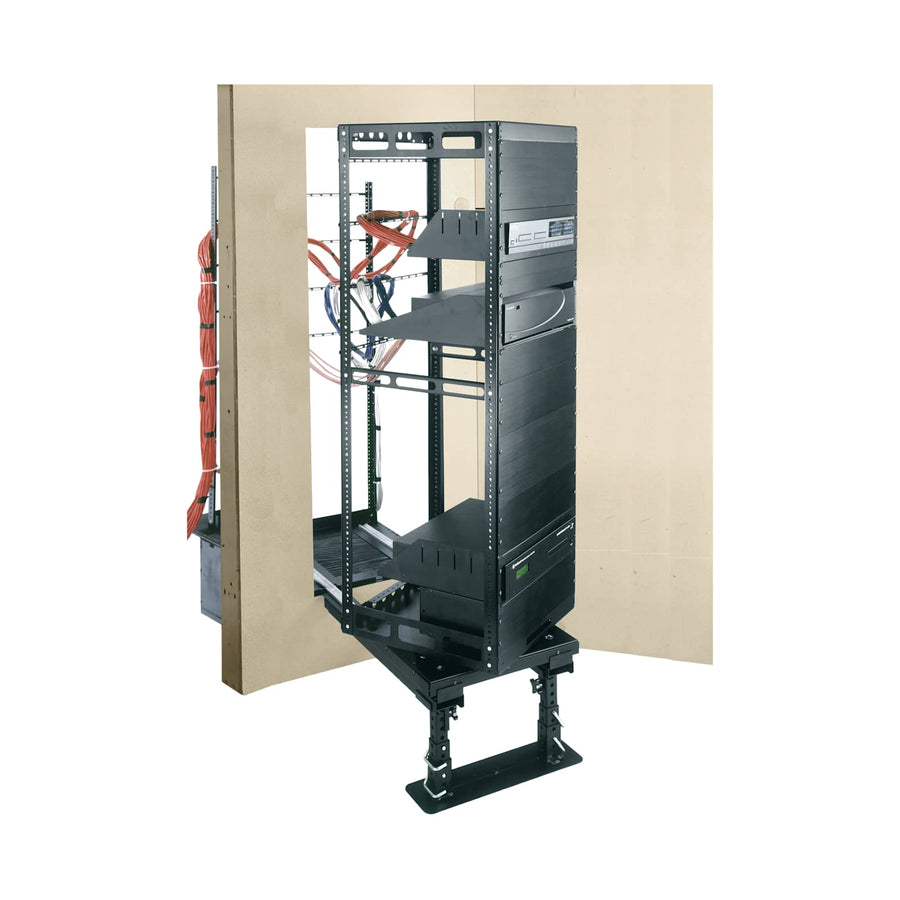

AXS Series Rack AX-SXR-28
28 RU in-wall slide out rotating rack with 450 lbs capacity for flush-mounted equipment
The AX-SXR-28 is a 28 RU in-wall slide out rotating rack designed for large-scale audio and video installations. While part of the AXS Series, this AX-SXR model features a unique rotating capability once extended, providing significantly better access to equipment in confined or cramped installation spaces. It is an ideal solution for mounting equipment flush into a wall or cabinet where serviceability is a priority. This rack is constructed with unique interlocking corner joints to ensure exceptional structural strength and simplified assembly. The unit features standard fixed front and rear 10-32 threaded rackrails with numbered spaces to assist with component placement. For efficient installation, the service tracks include a built-in level. This rack is TAA compliant and manufactured in the USA.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 20 in (50.8 cm) |
| Height | 53.69 in (136.4 cm) |
| Rack Units | 28 RU |
| Shipping Weight | 103.5 lbs (47 kg) |
| Usable Depth | 20 in (50.8 cm) |
| Usable Height | 49 in (124.5 cm) |
| Weight Capacity | 450 lbs (204.1 kg) |
| Width | 19.25 in (48.9 cm) |
All other specifications 5
| Federal Ops Country of Origin | USA |
| Rack Rail Type | 10-32 |
| TAA Compliant | YesYes |
| UPC | 656747056178 |
| Certifications | TAA |
Resources
You'll need these with it
AXS Service Tracks 31 Inch
TRACK31$512.10
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
PDT Low Profile Vertical Power Strip, 10 Outlet, 15A
PDT-1015C-NS$253.80
PDT Low Profile Vertical Power Strip, 10 Outlet, 20A
PDT-1020C-NS$297.90
PDT Low Profile Vertical Power Strip, 10 Outlet, 15A & 2-Stage Surge
PDT-1015C-RN$297.90
PDT Low Profile Vertical Power Strip, 10 Outlet, 15A with Local Meter
PDT-1015C-M-NS$385.20
23 RU Lace Strip 4.75 Inches Wide with Tie Posts - 6 Piece
LACE-23-OWP$282.60
23 RU Lace Strip 3.25 Inches Wide with Tie Posts - 6 Piece
LACE-23-OP$250.20
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
4 RU Flanged Blank Rack Panel, Wrinkled
WSB4$41.40
Questions about this part
How does the AX-SXR-28 differ from standard AXS Series racks?
Unlike the standard AXS Series, the AX-SXR-28 features a rotating mechanism that allows the rack to turn once it is pulled out from the wall, allowing for better serviceability in cramped areas.
What is required for the installation of the AX-SXR-28?
Installation requires AXS Service Tracks (such as the 31 Inch TRACK31) and service stands, which are sold separately.
Is this rack suitable for heavy professional AV systems?
Yes, the rack supports a weight capacity of 450 lbs (204.1 kg) and is constructed with interlocking corner joints for enhanced strength.
What type of rackrails are used in this unit?
The AX-SXR-28 uses standard fixed front and rear 10-32 threaded rackrails that include numbered spaces.
Is this product TAA compliant?
Yes, the AX-SXR-28 is TAA compliant and is manufactured in the USA.
