AXS Series Rack AX-SXR-24
24 RU in-wall rotating rack that slides out for full serviceability in tight spaces, 450 lbs weight capacity

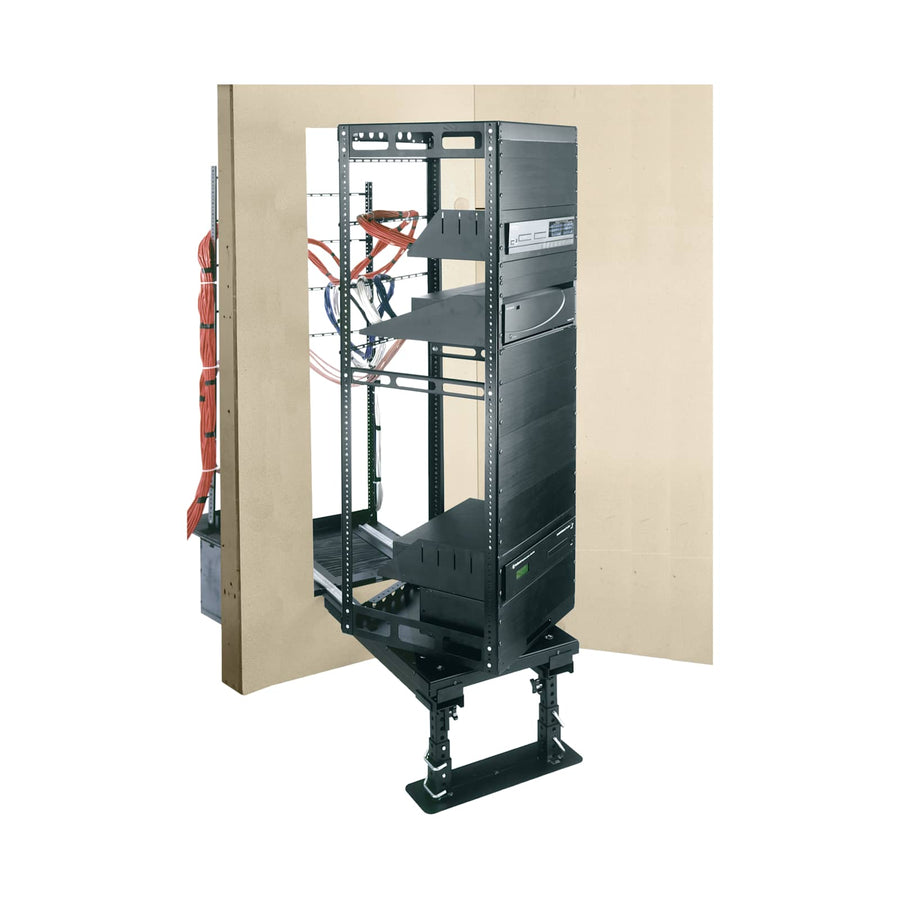

The Middle Atlantic AX-SXR-24 is a 24 RU in-wall slide out rotating rack designed for flush installations in walls or cabinetry. This unit differs from the standard AXS Series by incorporating a rotation feature that activates once the rack is pulled out, providing significantly easier equipment access in cramped or shallow mounting environments. It features a unique interlocking corner joint to ensure structural integrity and simplified assembly. The frame is built with standard fixed front and rear 10-32 threaded rackrails that include numbered spaces for efficient equipment placement. This rack is engineered to support a weight capacity of 450 lbs (204.1 kg) and is TAA compliant for government or sensitive installations. For field efficiency, the frame can be integrated off-site before installation and includes a built-in cable management system.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 20 in (50.8 cm) |
| Height | 46.69 in (118.6 cm) |
| Rack Units | 24 RU |
| Usable Depth | 20 in (50.8 cm) |
| Usable Height | 42 in (106.7 cm) |
| Weight Capacity | 450 lbs (204.1 kg) |
| Width | 19.25 in (48.9 cm) |
| Federal Ops Country of Origin | USA |
| Rack Rail Type | 10-32 |
| TAA Compliant | YesYes |
| UPC | 656747056130 |
| Certifications | TAA |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
AXS Service Tracks 31 Inch
TRACK31$512.10
AXS Service Stand 2-3 Inches High
TRACKLDiscontinued
AXS Service Stand 3-10 Inches High
TS310$451.80
PDT Low Profile Vertical Power Strip, 10 Outlet, 15A
PDT-1015C-NS$253.80
PDT Low Profile Vertical Power Strip, 10 Outlet, 20A
PDT-1020C-NS$297.90
PDT Low Profile Vertical Power Strip, 10 Outlet, 15A & 2-Stage Surge
PDT-1015C-RN$297.90
PDT Low Profile Vertical Power Strip, 10 Outlet, 15A with Local Meter
PDT-1015C-M-NS$385.20
23 RU Lace Strip 4.75 Inches Wide with Tie Posts - 6 Piece
LACE-23-OWP$282.60
23 RU Lace Strip 3.25 Inches Wide with Tie Posts - 6 Piece
LACE-23-OP$250.20
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
Questions about this part
How does the AX-SXR-24 differ from the standard AXS Series rack?
While the AXS series is designed for sliding, the AX-SXR-24 adds a rotation capability once pulled out, making it better for accessing equipment in very confined spaces.
What do I need to buy to complete the installation?
Service tracks, such as the TRACK31, and service stands, such as the TS310, are sold separately and are required for the slide-out mechanism.
Is this rack TAA compliant?
Yes, the AX-SXR-24 is TAA compliant and is manufactured in the USA.
How much weight can this 24 RU rack support?
The rack has a total weight capacity of 450 lbs (204.1 kg).
What documentation is available for submittals?
You can find the AX-SXR System for Millwork & In-Wall A&E Specification Sheet and CAD Technical Specification Drawings in the resources tab.
