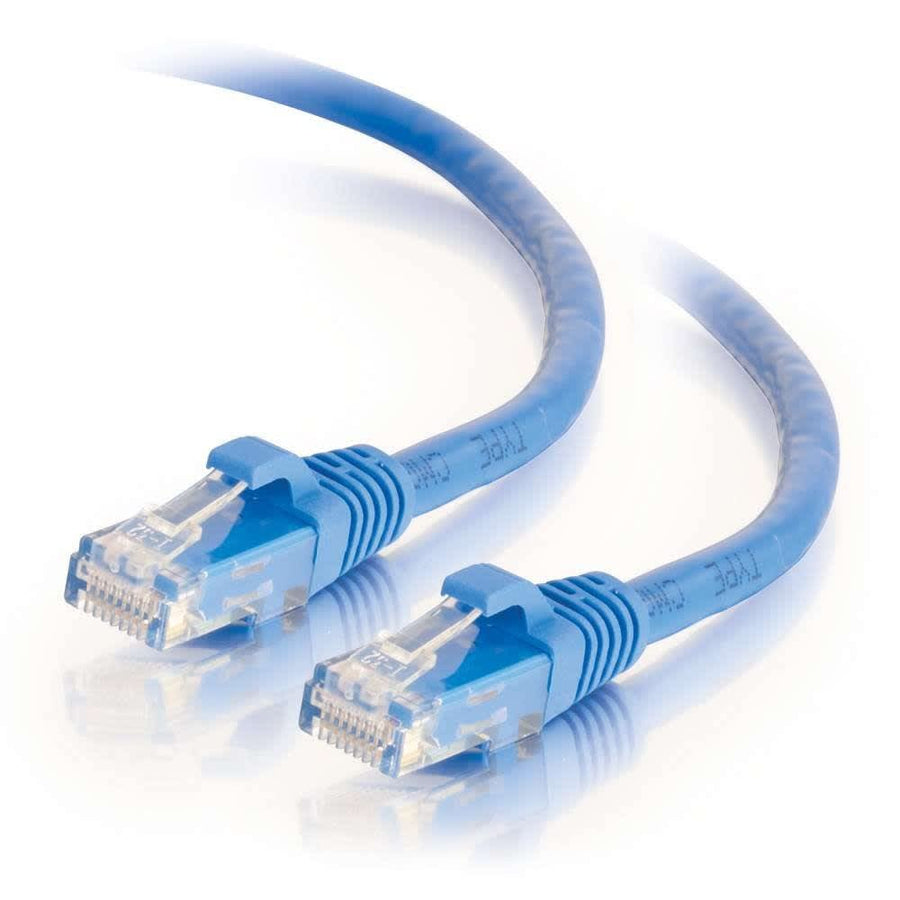

9ft (2.7m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
9ft (2.7m) Cat6 unshielded UTP patch cable in blue, featuring snagless boots for clip protection and strain relief
The C2G CG03977 is a 9ft (2.7m) Cat6 snagless unshielded UTP Ethernet network patch cable designed for bandwidth-intensive voice, data, or video distribution. This blue cable utilizes stranded copper conductors and a 24 AWG wire gauge to support high-speed Gigabit computer networks. By bonding individual pairs together, the design helps maintain twist-spacing through the termination point, which significantly reduces impedance and structural return loss (SRL) while minimizing Near-End Crosstalk (NEXT) levels. Each end features RJ-45 male connectors protected by a molded PVC snagless boot, which provides extra strain relief and prevents accidental damage to the connector clips during installation or frequent plugging and unplugging. This cable is built to meet all Cat6 TIA/EIA standards for reliable performance in professional environments. The blue jacket allows for easy color-coding within complex network installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 9 ft (2.7 m) |
| Shield Type | UTP |
| Shipping Weight | 0.24 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120039778 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
9ft (2.7m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG03985$9.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Questions about this part
What is the length of the CG03977 cable?
This is a 9ft (2.7m) patch cable, part of a series that offers various lengths up to 150ft.
Does this cable include a snagless design?
Yes, it features a molded, snagless boot that protects the RJ-45 clips from snapping during installation and use.
What is the wiring scheme for this patch cable?
The CG03977 follows the T568B wiring scheme.
Is this cable shielded or unshielded?
This is an unshielded (UTP) Cat6 cable with a standard non-rated PVC jacket.
What is the difference between CG03977 and CG03985?
Both are 9ft Cat6 snagless UTP cables, but the CG03985 comes in a black finish rather than blue.
