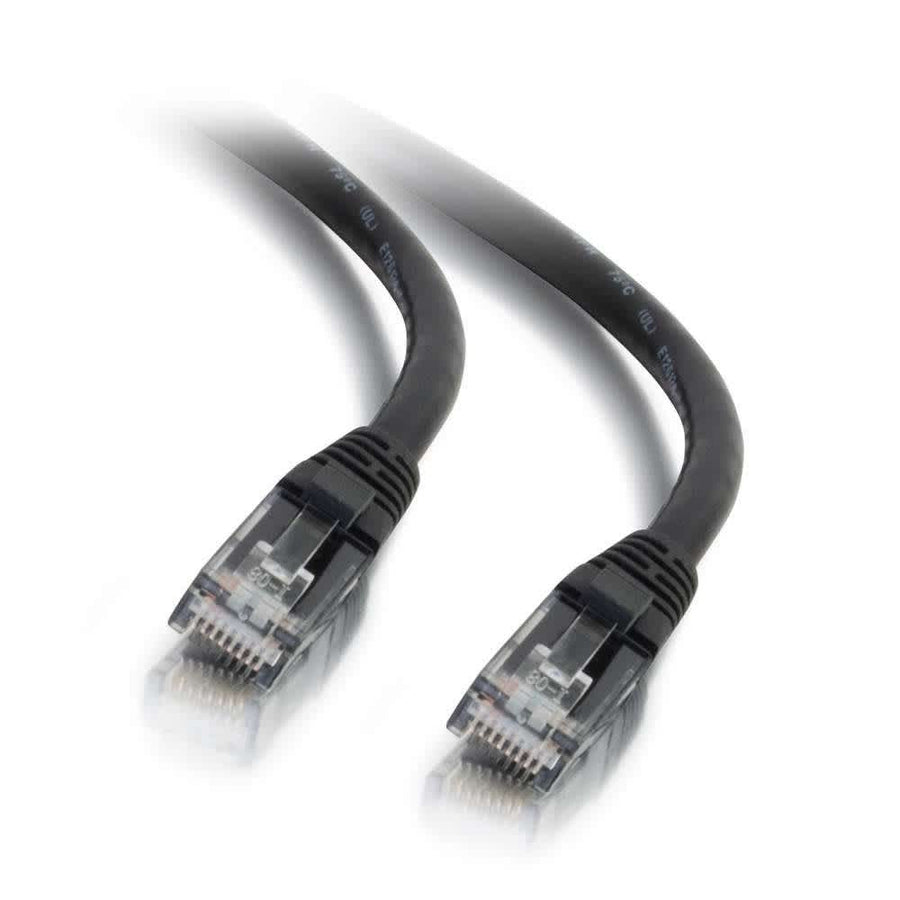

9ft (2.7m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Black
9ft Cat6 Unshielded UTP Ethernet patch cable with snagless boots for high-bandwidth voice, data, or video distribution
The C2G CG03985 is a 9ft (2.7m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable designed for bandwidth-intensive applications including voice, data, and video distribution. This cable meets all Cat6 TIA/EIA standards, providing performance that drastically reduces impedance and structural return loss (SRL). Each individual pair is bonded together to maintain consistent twist-spacing throughout the line up to the termination point, which helps minimize Near-End Crosstalk (NEXT) levels. This cable features stranded copper conductors and a 24 AWG wire gauge. The PVC jacket and hood material protect the connections, while the snagless, booted design protects the RJ-45 clips from damage during installation and provides extra strain relief. For color-coded network management, this black cable is part of a series available in up to 10 different colors. This SKU follows the T568B wiring scheme and is a standard unshielded (UTP) construction.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 9 ft (2.7 m) |
| Shield Type | UTP |
| Shipping Weight | 0.26 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120039853 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
9ft (2.7m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
CG03977$9.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Questions about this part
What is the length and diameter of the CG03985 cable?
The CG03985 has a cable length of 9 ft (2.7 m) and a cable diameter of 0.24 in (6.2 mm).
Does the CG03985 include a snagless boot?
Yes, the CG03985 features a snagless, booted connector type that protects the RJ-45 clips and provides strain relief.
Is the CG03985 Cat6 compliant?
The CG03985 meets all Cat6 TIA/EIA standards for bandwidth-intensive network environments.
What wiring scheme does this Cat6 cable use?
This patch cable uses the T568B wiring scheme for its RJ-45 male connectors.
Can I find this cable in other colors?
Yes, this black cable is available in up to 10 different colors to assist with network color-coding.
