Psiber Pinger Plus Network IP Tester
Network IP tester for verifying LAN operation, DHCP server functionality, and 10/100/1000Base-TX link signals

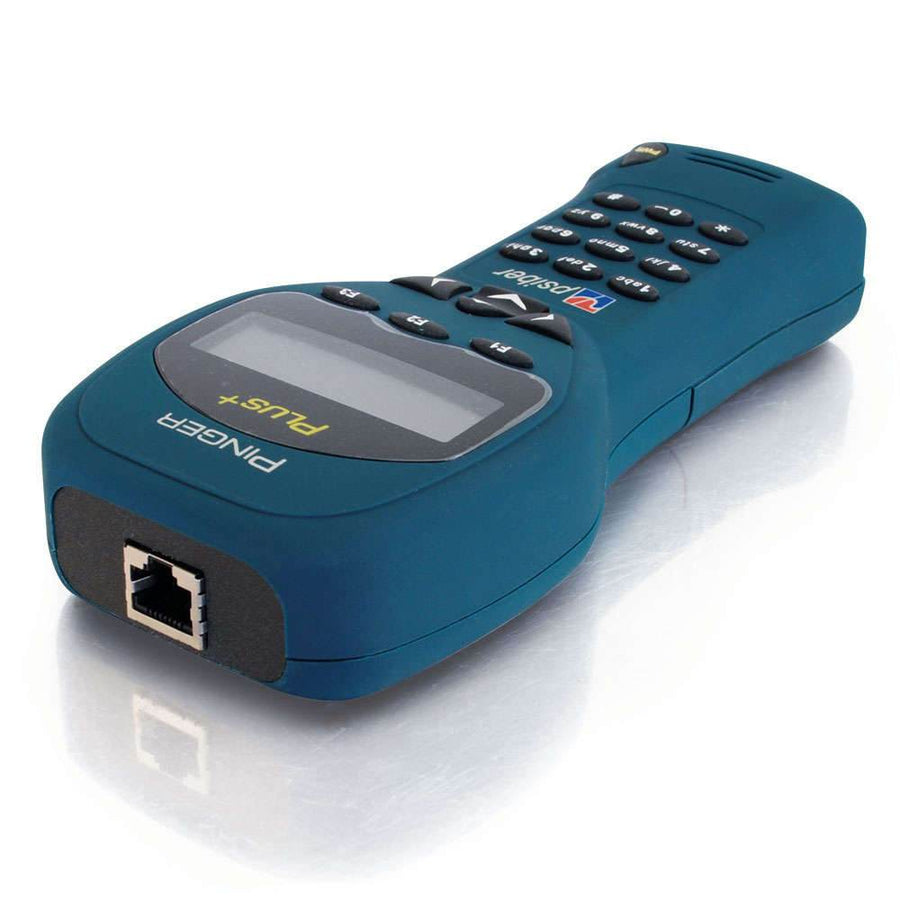

The Psiber Pinger Plus Network IP Tester (CG29431) is a specialized diagnostic tool used by network technicians to verify connectivity and hardware performance at remote locations. This tester identifies 10/100/1000Base-TX link signals and can PING a single IP address, a specific list, or an entire range. It features an alphanumeric keyboard for direct IP address entry and a web browser interface for managing unit setup or performing software upgrades. For advanced troubleshooting, the device identifies wire pair connections with reversed polarity and displays the MAC address for any tested IP address. Additionally, it includes a port identification function via link light activation and can verify DHCP server functioning by acting as a DHCP client to ensure correct IP addresses are being provided. The tester even performs PING functions at full 10/100 auto-negotiate speeds.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
| Shipping Weight | 1.38 lbs (0.6 kg) |
| Color | Blue |
| Product Type | Tester |
| TAA Compliant | No |
| UPC | 757120294313 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Warranty | Lifetime |
Questions about this part
What can the CG29431 test regarding IP addresses?
The Psiber Pinger Plus can PING a single IP address, a specific list, or a range of IP addresses to verify connectivity.
Can this tester verify DHCP server performance?
Yes, the device features DHCP client capability to verify that a DHCP server is functioning and providing the correct IP addresses.
How does the device handle MAC address identification?
The Psiber Pinger Plus displays the MAC address associated with any tested IP address during the diagnostic process.
Is it possible to identify specific switch ports with this tool?
The unit includes a port identification function that utilizes link light activation to help locate specific ports.
How are software updates performed on the CG29431?
Users can access a web browser interface on the unit to manage system setup and perform necessary software upgrades.
