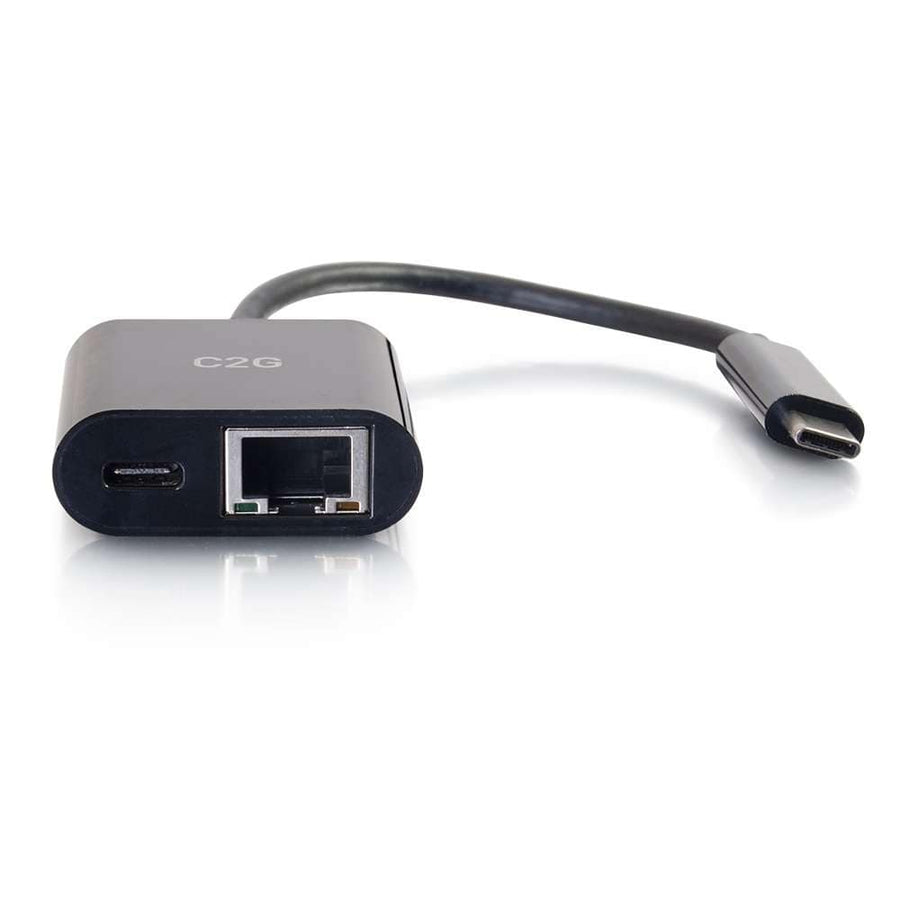

USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
USB-C to Ethernet adapter featuring Gigabit Ethernet and 100W Power Delivery for laptops and tablets
The CG29749 is a USB-C to Ethernet Multiport Adapter with Power Delivery designed to provide wired network connectivity and simultaneous device charging. This active adapter connects to any USB-C or Thunderbolt™ 3 enabled port on a laptop, tablet, or desktop computer. It features an RJ-45 female port for Gigabit Ethernet, allowing for reliable internet connectivity and data transfer speeds up to 1000Mbps in environments where Wi-Fi is unavailable or when a computer lacks a native Ethernet port. The integrated USB-C female port supports Power Delivery, providing up to 100W of power to the connected device. This small form factor device is compatible with Apple® iPad Pro®, MacBook®, MacBook Air®, and MacBook Pro®, as well as the Microsoft® Surface® Book 2 and Surface Go. It is a plug-and-play solution that requires no drivers for operation. The unit features a reversible and symmetrical USB-C male connector with a 0.36 ft (0.1 m) cable length and a PVC jacket.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.54 in (39 mm) |
| Cable Diameter | 0.15 in (3.9 mm) |
| Cable Length | 0.36 ft (0.1 m) |
| Operating Humidity Max | 85% RH (Non-Condensing) |
| Operating Humidity Min | 15% RH (Non-Condensing) |
| Operating Temperature | 32° - 113°F (0° - 45°C) |
| Shipping Weight | 0.07 lbs (0 kg) |
| Storage Humidity Max | 85% RH (Non-Condensing) |
All other specifications 13
| Storage Humidity Min | 15% RH (Non-Condensing) |
| Storage Temperature Max | 158 Fahrenheit (70 Celsius) |
| Storage Temperature Min | 14 Fahrenheit (-10 Celsius) |
| Wire Gauge | 34 |
| Color | Black |
| Connector 1 | (1) USB-C Male |
| Connector 2 | (1) RJ-45 Female(1) USB-C Female |
| Product Type | Active DeviceAdapter |
| TAA Compliant | No |
| UPC | 757120297499 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | 5 years |
Resources
Questions about this part
Will this adapter work with my MacBook or iPad Pro?
Yes, the CG29749 is compatible with Apple® iPad Pro®, MacBook®, MacBook Air®, and MacBook Pro® models that utilize USB-C or Thunderbolt™ 3 ports.
Can I charge my laptop through this adapter?
Yes, the USB-C female port supports Power Delivery and can provide up to 100W of power to your connected device.
Does this adapter support network booting?
Yes, this multiport adapter supports PXE Boot functionality for network-based booting.
How does this compare to other USB-C adapters?
This is a multiport adapter that handles both Gigabit Ethernet and Power Delivery; it is available in a white finish as well as this black version.
What documentation is available for submittals?
For technical details and product change notices, you can refer to the C2G-29748 Datasheet or the CG29749 and CG82408 Product Change Notice.
