Trio Combo Module with Cat6 Data
Integrated distribution module for video, telephone, and Cat6 data services within a single enclosure

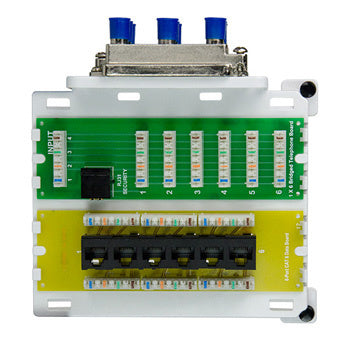

The CO1166 Trio Combo Module with Cat6 Data is engineered to centralize the distribution of video (Coax), voice (Telephone), and data (Ethernet) services from one compact structured wiring module. This module is designed to maximize space within an enclosure while providing multiple service distribution options. The assembly includes an MDU Mounting Bracket (AC1042) to secure the unit and a 2 GHz Video Splitter (VM0208) that supports up to 8 locations. For telephony, the included 6-way Phone Module (TM0106) features a punchdown termination for 6 locations and an RJ31x line seizure port. Additionally, the 6-way Cat6 Data Board (AC0606) supports punchdown termination for 6 Cat6 data lines, allowing for a direct interface with the home network. Integrated cable tie locations are strategically positioned to maintain tidy wiring terminations during installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Number of Ports | 21 |
Resources
Questions about this part
What is included with the CO1166 module?
The module comes equipped with an MDU Mounting Bracket (AC1042), a VM0208 8-way 2 GHz Video Splitter, a TM0106 6-way Phone Module, and an AC0606 6-way Cat6 Data Board.
How many Cat6 connections can I terminate with this module?
The integrated AC0606 Data Board allows for the punchdown termination of 6 separate Cat6 data lines.
Will this module work for 8 video locations?
Yes, the included VM0208 Video Splitter is rated for 2 GHz and supports distribution to up to 8 locations.
Does the phone module support standard telephone lines?
The TM0106 6-way Phone Module supports punchdown termination for 6 locations and includes an RJ31x line seizure port.
What documentation is available for submittals?
Installers can access the CAD drawing (dwg), CAD PDF, and the IS-1507294-OQ PDF for technical specifications and installation details.
