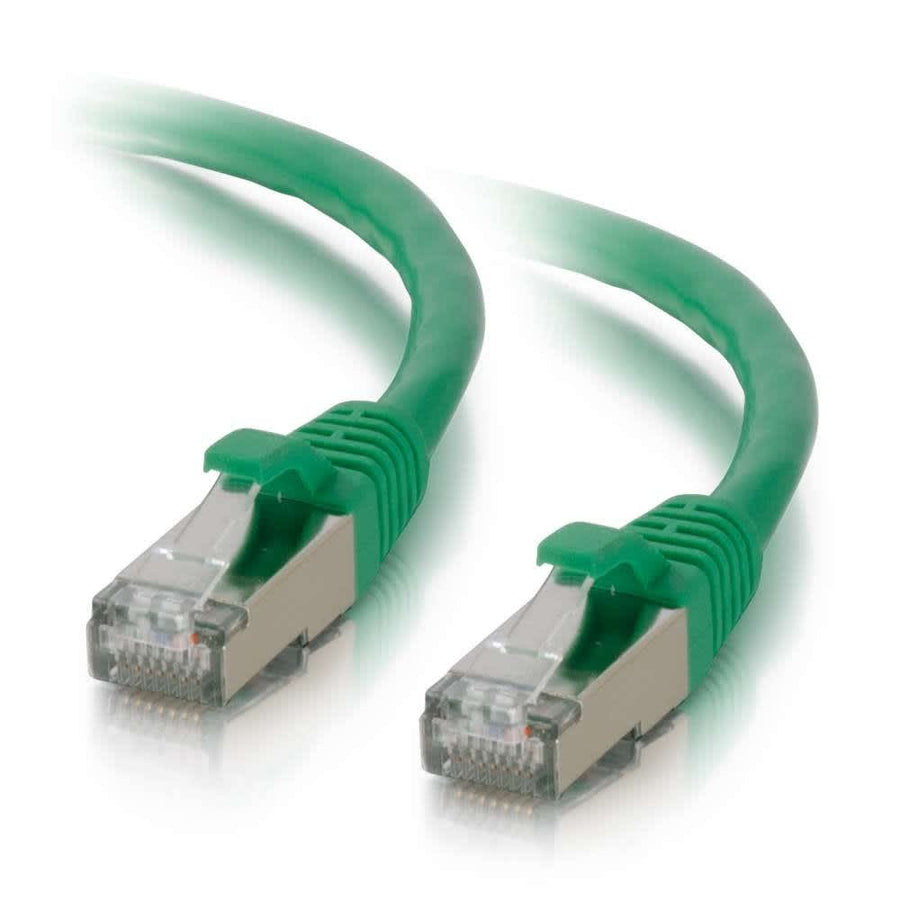

9ft (2.7m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Green
9ft Cat6 Shielded STP Ethernet patch cable in green, featuring 26AWG stranded copper conductors and snagless boots
The C2G CG00833 is a 9ft (2.7 m) Cat6 Shielded (STP) Ethernet network patch cable designed to protect high-speed networks from electromagnetic interference and noise. This green cable is constructed with 26AWG stranded bare copper conductors and features a PVC jacket with a standard rating. Utilizing a T568B wiring scheme, the cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements, making it suitable for bandwidth-intensive voice, data, and video distribution. Each individual pair is bonded together to maintain consistent twist-spacing from the termination point to the end of the line, which helps minimize Near-End Crosstalk (NEXT) levels. The cable includes snagless, booted RJ-45 male connectors with PVC hoods to protect the connection. For easy identification in complex installations, this cable is green and includes an individual length label on each unit.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 9 ft (2.7 m) |
| Shield Type | STP |
| Shipping Weight | 0.29 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120008330 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
8-Port Network Switch
DA8000WH$79.99
Questions about this part
Will this Cat6 cable work for high-bandwidth data applications?
Yes, this STP patch cable is designed for voice, data, and video distribution to handle bandwidth-intensive applications by reducing impedance and structural return loss.
What wiring standard does the C2G CG00833 use?
This 9ft patch cable uses the T568B wiring scheme for standard network connectivity.
What is the conductor material and gauge for this cable?
The cable features 26AWG (7/0.16) stranded bare copper conductors.
Does this cable include protection against electromagnetic interference?
Yes, the Shielded (STP) design is specifically intended to protect high-speed networks from noise and electromagnetic interference.
What is the temperature rating for this green patch cable?
The cable is rated for operating temperatures up to 75°C.
